Professional Manufacturer of Hydraulic Scrap metal Balers
Portable Metal Baler Logger，Alligator Shears, Scrap Shearing Balers
|Place of Origin:||China|
|Certification:||CE and ISO9001|
|Minimum Order Quantity:||1 set|
|Packaging Details:||15500x2960x4150mm, 110000KGS, Seaworthy packing|
|Delivery Time:||50 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||10 sets/month|
|Cutting Force:||630ton||Press Room Size:||6000x2500x795mm|
|Capacity:||15-20ton/h||Max. Thickness Can Be Press:||5mm|
|Product Name:||Shear Baler||PLC Brand:||Mitsubishi Or Siemens|

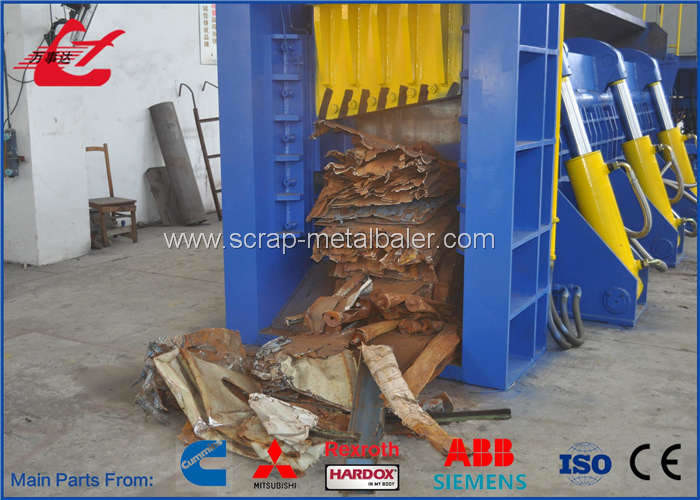

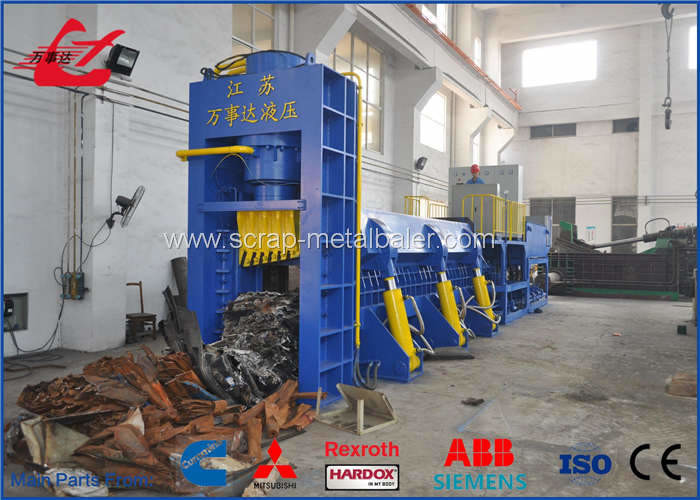

630Ton Hydraulic Metal Baler Shear 15-20Ton/h Capacity for Waste Vechiles Steel Copper Scrap WANSHIDA
We are China Waste Car Shear Press Manufacturer. We specialize in waste metal recycling equipment for Wase aluminum, tin cans, metal sawdust, waste car, radiator, waste paper, waste cardboard, etc.
Our Y83Q-6300C Waste Car Shear Press is designed for cold compaction of various thin metal materials with less than 4mm in thickness into rectangular bales at normal state, such as scrap steel, scrap iron, iron and steel scrap, and wire rod, etc. Furthermore, this metal scrap baling machine is capable of cutting the rectangular bales to a required length as per application needs. Also, it can shear steel sections that are not longer than 5m. Our scrap metal recycling equipment brings great convenience for storage and transportation of scrap metal, and simultaneously provides qualified furnace charge for metal smelting plants.
2. Technical Parameters:
|Cylinder pushing /shearing force||630 ton|
|Maximum working pressure||20MPa|
|Press room open size||6000×2500×795mm|
|Bale dimensions (L×W×H)||(500-800)×800×(400-600)mm|
|Max scrap thickness||5mm|
|Cutting Speed||2-3 times/min|
|Hydraulic Oil Cooling system||Air cooling system|
|Baler dimensions (LxWxH)||15500×29600×4150mm|
|Scrap size can be cut||
Square Steel: 100×100mm
Angle Iron: 180×180×15mm(3pcs)
Channel Steel: 320×90×10mm
The Y83Q series scrap metal shear baler is fabricated by absorbing the advanced technology of similar products like the metal baler and the metal shear at home and abroad, combing the needs of customers and our actual operating situations.
Configured with hydraulic drive system, our machine can be operated under manual control or automatic control of PLC. The size of compacting box, bale size and baling mode can be designed specially to meet users' needs. Our machine can be equipped with motor or diesel engine as required. Additionally, we are able to help users to install and debug the machine and train the operators.
This scrap metal shear baler is capable of cold pressing various thin metal materials with the thickness less than 3mm into rectangular bales at normal state, such as waste steel, scrap iron, wire steel, etc. Moreover, this machine will cut the rectangular bale into required length, including the steel section that is not longer than 5m. It makes the waste metal materials convenient for storage and transportation. This machine is also able to offer qualified furnace charge for metal smelting plant.
1. Our scrap metal shear baler is designed reasonably with compact structure. It is small and lightweight. Aside from small inertia of movement and low noise, this machine offers stable movement, flexible operation, low energy consumption, simple installation, safe and reliable performance, etc.
2. Under the integrated hydraulic and electrical control, it becomes user friendly and easy for overload protection.
3. This machine possesses a wide range of applications. It is able to work as processing equipment in metal recycling industry and smelting field.
6. Brief Introduction of Baling Process
When the clamping cylinder of the scrap metal shear baler works, the clamping head is perceived as the locking door, users have to put the waste materials for baling into the compacting box manually or mechanically. With the automatic start button pressed by hand, the left and right clamping cylinders start to work separately to move the left and right clamping board to the position for closing the compacting box. The pushing cylinder will move forward to press the waste materials into bales, accomplishing the baling task.
Next, the clamping head will be opened. The bale ejector will push the bale at certain distance for cutting with shear cylinder. This action will be repeated without stop until the bale is about 600mm long left. Then the cutting job is finished. When the clamping head works, the bale ejector turns back to its original position. After the left and right clamping boards are opened again, the automatic baling and cutting process is done.
The scrap metal shear baler will wait for another manual press on automatic start button to continue the work cycle. If it doesn't need to bale and cut any more, users can push the left 600mm bale out of the equipment by hand.
