Y83Q-160 Front Out Metal Hydraulic Baler Customized Press Room Size
1 set
MOQ
Negotiable
Price
Y83Q-160 Front Out Metal Hydraulic Baler Customized Press Room Size
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83Q-160
High Light:

scrap baler machine

,

scrap metal compactor

,

front out metal hydraulic baler

Payment & Shipping Terms
Packaging Details: 5000KGS, Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Press Force: 160ton
Press Room Size: 1450x600x600mm
Bale Size: (400-600)×600×300mm
Motor: 22kW
Capacity: 2000-2800KG/h
Bale Discharging: Front Out
Product Name: Scrap Metal Baler
Weight: 8000kgs
Product Description

Y83Q-160 Front Out Metal Hydraulic Baler Bale come out from front



1. Description:

This Y83Q-160 Forwarder out Scrap Metal Baling Press is forward-out machine that is commonly used in the metal smelting plant with small and medium scaled production, as well as the waste metal recycled station.

It is usually manipulated manually to process the light and thin materials. The finished bale is applicable for small processing furnace in the steel plant. In general, the bale is about 200mm high and 600mm wide. Its length depends on the quanity of fed materials. If cutomers want more information about this scrap metal baler, please contact our professional sales department.



2. Technical Parameters:

Y83Q-160 Forwarder out Scrap Metal Baling Press (Bales Front Out)
Model Y83Q-160
Cylinder pushing /shearing force 160 ton
Maximum working pressure 25MPa
Capacity 3 tons/h
Compress room size 1450×600×600mm
Bale dimensions (L×W×H) (400-600)×600×300mm
Theoretical dry cycle time 160 sec.
Motor 22 kW
Weight 8000KG
Baler dimensions (L×W×H) 6500×2300×2000mm







































3. Features:

1) This forward out baler is driven be hydraulic devices. In the compact structure with rational design, it is small in volume and light in weight. Moreover, it works with small inertia of movement, low noise, stable but flexible operation and other highlights.
2) Our machine utilizes the integrated hydraulic and electrical control. It is easy for use and maintenance.
3) This forward out baler is featured by strong adaptability to diversified working conditions and wide applicable range. It can be used as the machining equipment in the metal recycling unit and for furnace charge in the casting room of factory.
4) Aside from low energy consumption, this product also incorporates such characteristics as easy installation, safe and dependable use, high efficiency, low cost and so on.



4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



5. Application:

Non Ferrous Metals
coppers
Aluminum Cans

Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans

Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires





6. Photos:

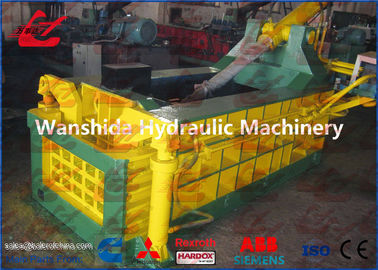

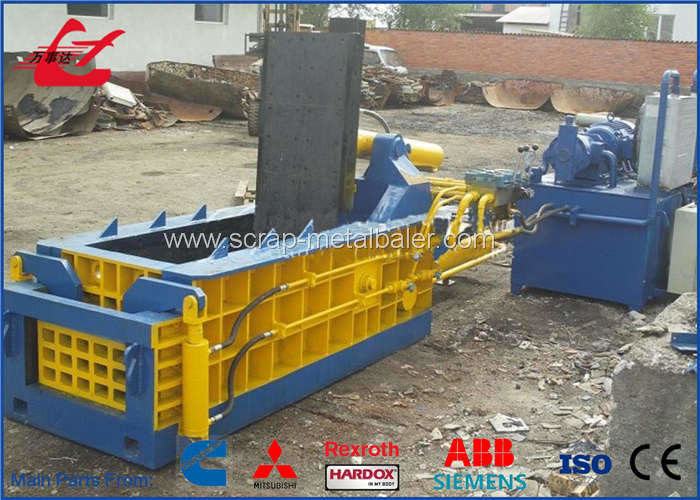

Y83Q-160 Front Out Metal Hydraulic Baler Customized Press Room Size 0Y83Q-160 Front Out Metal Hydraulic Baler Customized Press Room Size 1
