200 Ton Full Automatic Hydrauilc Metal Scrap Baling Machine With Feeding Hopper
1 set
MOQ
Negotiable
Price
200 Ton Full Automatic Hydrauilc Metal Scrap Baling Machine With Feeding Hopper
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/T-200B
High Light:

scrap baling press machine

,

scrap metal press machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Metal Scrap Baling Machine
Press Room Size: 1600x1200x800mm
Bale Size: 400×400mm
Motor: 44kW
Capacity: 5ton/h
Bale Discharging: Push Out
Operation: PLC Automatic Control
Dimension: 11800x6760x6700mm
Product Description

200Ton Full Automatic Hydraulic Metal Scrap Baling Machine with Feeding Hopper





1. Description:

This Y83/T-200B Hydraulic Metal Balers push the bale out of the machine from one side. It is mostly used in the metal smelting plant with medium scaled production, metal processing and recycling stations and other applications. This product is mainly exported to Australia and other countries. It is powered by diesel engine.The uer also can choose electric motor drive.



Users can choose to operate this Hydraulic Metal Balers manually or under PLC control. Moreover, the feeding hopper is optional for meeting the needs of users. As this product has larger compacting box and the motor with higher power than the Y83-160 type, its output is higher as well. Additionally, our product is able to pack the materials that are 4.5mm thick. More information will be gotton from our professional sales group.



2. Technical Parameters:

Non Ferrous Hydraulic Metal Balers
Model Y83/T-200B
Cylinder pushing /shearing force 200 ton
Maximum working pressure 25MPa
Compress room size 1600×1200×800mm
Bale dimensions (L×W×H) 400×400mm
Capacity 5 tons/h
Theoretical dry cycle time 110 sec.
Max. thickness can be press 5mm
Motor 44kW
Operation method Hand Valve Control or PLC control
Bale discharging method Push out
Weight 15500(kgs)
Baler dimensions (L×W×H) 11800×6760×6700mm









3. Description:

1) This Hydraulic Metal Balers adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.
2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

6. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

            Aluminum And Copper Wires

            Scrap Car

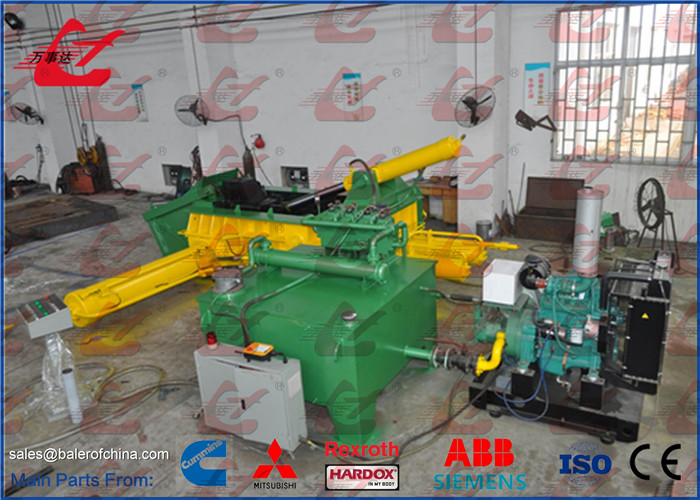

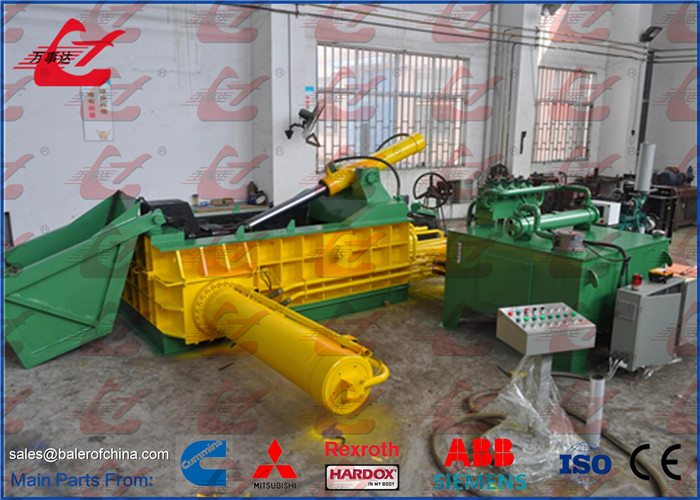

7. Photos:

200 Ton Full Automatic Hydrauilc Metal Scrap Baling Machine With Feeding Hopper 0

200 Ton Full Automatic Hydrauilc Metal Scrap Baling Machine With Feeding Hopper 1
