Hydraulic Aluminum Bailer / Scrap Metal Baler Max. 3mm Thickness 1000-1200KG/h
1 set
MOQ
Negotiable
Price
Hydraulic Aluminum Bailer / Scrap Metal Baler Max. 3mm Thickness 1000-1200KG/h
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-125
High Light:

hydraulic metal baler

,

scrap metal compactor

Payment & Shipping Terms
Packaging Details: 5000KGS, Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Scrap Metal Baler
Press Room Size: 1200x700x600mm
Bale Size: 250x250 Or 300x300mm
Motor: 18.5kW
Capacity: 1000-1200KG/h
Max. Thickness Can Be Press: 3mm
Usage: Press Scrap Metal
PLC Brand: Mitsubishi
Product Description

Turn Out Scrap Metal Baler Hydraulic Aluminum Bailer Baling Max. 3mm Thickness Scrap



1. Product Name: Aluminum Cans Scrap Metal Baler(Y83-125)

Y83-125 Aluminum cans Scrap Metal Baler is the proper equipment suitable for small and medium scaled metal smelting and waste metal recycling plant. Due to the small volume, low production cost, low failure rate, small investment and other merits, the product is out best selling machine. It has a wide customer base all over the world.


2. Application:

Y83-125 hydraulic metal baler is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so as to reduce the cost of transportation & smelting, to speed up furnace charging.


3. Specifications:

Nominal force (kN) 1250
Dimension of compress room (L*W*H) (mm) 1200*700*600
Bale dimension (L*W*H)(mm) (150-400)*250*250
Bale density (kg/m3 ) >1800
Capacity (kg/h) 1200-1500
Single cycle time(s) <100
Power (kW) 18.5
Bale discharging and operation Turn-out, hand valve control






4. Quality: This machine apply to ISO9001: 2000 standard.


5. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.



6. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



7. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

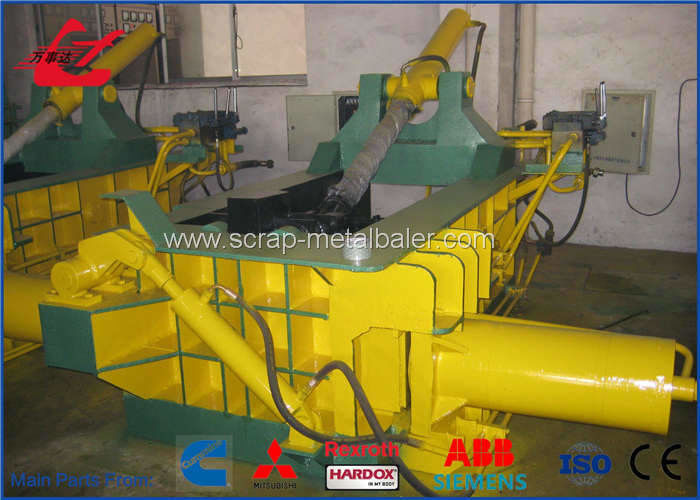

8. Photos:

Hydraulic Aluminum Bailer / Scrap Metal Baler Max. 3mm Thickness 1000-1200KG/h 0Hydraulic Aluminum Bailer / Scrap Metal Baler Max. 3mm Thickness 1000-1200KG/h 1
