1800 - 2000kg / H Capacity Metal Briquetting Machines Vertical Structure WANSHIDA
1 set
MOQ
Negotiable
Price
1800 - 2000kg / H Capacity Metal Briquetting Machines Vertical Structure WANSHIDA
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-5000
High Light:

metal chip briquetter

,

aluminium briquetting machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Specifications
Product Name: Metal Briquetting Machines
Briquetter Size: D150x(70-100)mm
Capacity: 1800-2000kg/h(Cast Iron Sawdust)
Motor: 30kW
Operation: PLC Automatic Control
PLC Brand: Mitsubishi Or Siemens
Product Description

WANSHIDA Scrap Metal Sawdust Briquetting Presses Briquetter press Machine



1. Products:

This Y83-5000 scrap metal briquette press is mainly applied in the aluminum alloy section plant, steel casting foundry, aluminum casting factory, copper casting plant, etc. It compresses the waste metal into briquette for melting again instead of the scrap steel, pig iron, aluminum ingot and waste copper. This machine reduces the melting loss of materials, significantly increasing the utilization of waste metal.
The scrap metal briquette press can be operated manually or automatically by PLC. Moreover, the optional feeding system can be mounted to meet the needs of customers. Without heating or adding any additives, this product is able to press various granular or powder cast iron, aluminum, magnesium, titanium, molybdenum and other metal materials into high density cylindrical briquettes, which will not become loose before thrown into the furnace.


2. Specifications:

Model Y83-5000
Cylinder pushing /shearing force 500 ton
Maximum working pressure 25MPa
Oil tank capacity 1800L approx.
Capacity 1800kg/h
Bale dimensions (LxWxH) D150x(60-100)mm
Theoretical dry cicle time 12 sec.
Motor 30kW
Operation method

PLC Automatic Control

Button Control

Single/Continues

Weight 14000 (kgs)
Machine dimensions (LxWxH) 3000x3800x4200mm









3. Application:

Under the situations that it is not heated or added with additives, the scrap metal briquette press is capable of pressing diversified granular and powdered materials into high density cylindrical briquettes that are hard to become loose. It processes the waste materials like scrap steel, cast iron, pig iron, aluminum ingot, waste copper, magnesium, titanium and molybdenum for secondary fusion instead of using them directly.
Our product makes it easy to recycle, smelt, store and transport the scraps. Moreover, it reduces the cost and melting loss so that the utilization rate of the waste is increased.
This product is commonly seen in the aluminum alloy section plant, steel, aluminum and copper casting plants, etc.



4. Structural Style
This scrap metal briquette press varies in vertical and horizontal structure. Therein, the vertical product is equipped with or without feeding cylinder. The diameter of bale can be designed in the designated range according to users' need. If there is no special requirement, the machine that weighs less than 200ton is structured with welded frame. With the weight ranging from 200ton to 315ton, the machine is designed with welded frame or four columns. Yet the product weighing over 500ton uses four columns.



5. Operating Methods
Our scrap metal briquette press can be designed for manual operation, single automatic operation or continuous automated manipulation. Users are free to select the PLC system for controlling the automatic operation as they want.



6. Features:
1) Due to the hydraulic drive, the machine runs stably and reliably.
2) The vertical product needs simplified foundation yet the horizontal machine doesn't need.
3) Under the control of PLC, this scrap metal briquette press possesses strong anti-interference capacity, high level of automation and ease of operation.
4) Based on the demands of users, this product can be equipped with automatic feeding and discharging devices to improve the production efficiency and decrease the labor intensity.



7. Quality: This machine apply to ISO9001: 2000 standard.



8. Service:
1) One year guarantee and lifelong maintenance;
2) Any problem, you can call us directly.





9. Photos:

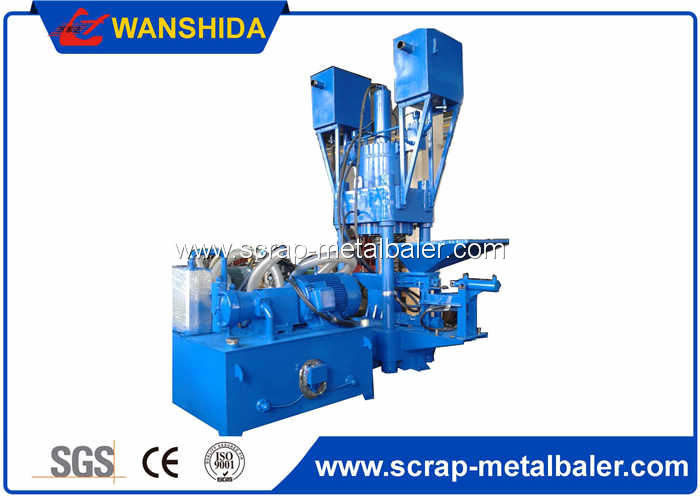

1800 - 2000kg / H Capacity Metal Briquetting Machines Vertical Structure WANSHIDA 0

1800 - 2000kg / H Capacity Metal Briquetting Machines Vertical Structure WANSHIDA 01800 - 2000kg / H Capacity Metal Briquetting Machines Vertical Structure WANSHIDA 2
