22kW Scrap Metal Recycling Equipment , 160ton Drum Bucket Press Baler Machine
1 set
MOQ
Negotiable
Price
22kW Scrap Metal Recycling Equipment , 160ton Drum Bucket Press Baler Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/T-160
High Light:

hydraulic metal baler

,

scrap metal compactor

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Scrap Metal Baler
Press Room Size: 1600x1000x800mm
Bale Size: 400×400mm
Motor: 22kW
Capacity: 5ton/h
Bale Discharging: Push Out
Operation: PLC Automatic Control
Dimension: 4630x4360x2400mm
Product Description

160ton CE Certificate Paint Box Drum Bucket Press Baler Machine



1. Products:

Our Y83/T-160 hydraulic scrap metal baler is popularized in the metal processing and recycling station, metal smelting plant with small and medium production. It is configured with the compacting box in size of 1600mm×1000mm×800mm. The finished bale is about 400mm×400mm in size. If customer want to make other bale size or press room size, we can design and produce according to your request.
Both the manual manipulation and the PLC automatic operation are available. Moreover, this scrap metal baler can be equipped with the motor with the optional power like 30kw or 37kw according to the production.



2. Technical Parameters:

Y83/T-160 Hydraulic Scrap Metal Baler
Model Y83/T-160
Cylinder pushing force 1600KN
Maximum working pressure 25MPa
Compress room size 1600×1000×800mm
Bale dimensions (L×W×H) 400×400mm
Motor 22kW
Capacity 5ton/h
Theoretical dry cycle time 110s
Max. thickness can be press 4mm
Operation method PLC Auto Control
Bale discharging method Push out
Baler dimensions (L×W×H) 4630×4357×2400mm
Weight 12000KG







3. Description:

1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.
2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



6. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

Paint Box

Paint Drum

Scrap steel bar

Scrap steel

Copper wire

Light Metal

Paint Bucket





7. Photos:

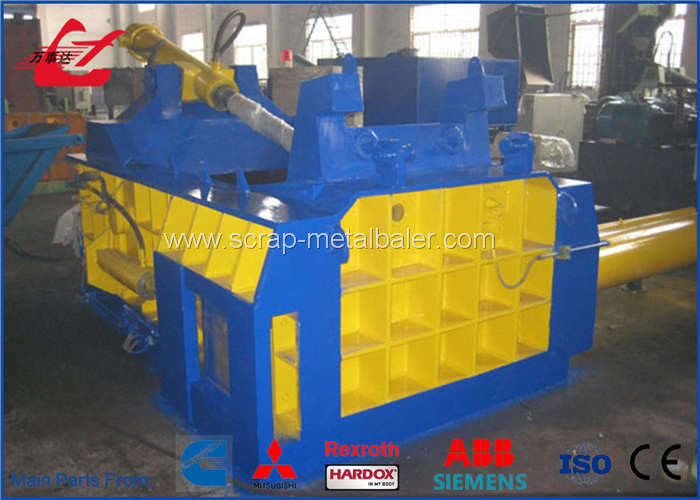

22kW Scrap Metal Recycling Equipment , 160ton Drum Bucket Press Baler Machine 022kW Scrap Metal Recycling Equipment , 160ton Drum Bucket Press Baler Machine 122kW Scrap Metal Recycling Equipment , 160ton Drum Bucket Press Baler Machine 2
