Aluminum Sheets Scrap Metal Baler Compactor With 125 Ton Press force
1 set
MOQ
Negotiable
Price
Aluminum Sheets Scrap Metal Baler Compactor With 125 Ton Press force
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/T-100
High Light:

hydraulic metal baler

,

scrap baler machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Scrap Metal Baler
Press Room Size: 1000x600x500mm
Bale Size: 200×200mm
Motor: 11kW
Capacity: 1200-1500KG/h
Bale Discharging: Push Out
Operation: Hand Valve Control
Weight: 4000kgs
Product Description

Y83/T-100 Waste Aluminum steel Parings Metal Baler



1. Product:

This Y83/T-100 Push out scrap steel balers are mostly applied in the metal smelting factory and scrap metal recycled station with low requirement on production. It is the smallest one among our metal baling presses. Operated manually, this product makes the bale in small size of 200×200mm convenient for moving and smelting. The bale is extremely suited to be sent to the metal smelting furnace in small size with high efficiency, improving the smelting speed. More information about the scrap metal baler will be obtained from our sales group.



2. Technical Parameters:

Scrap Steel Balers-Side Push out
Model Y83/T-100
Cylinder pushing force 100 ton
Maximum working pressure 25MPa
Compress room size 1000×600×500mm
Bale dimensions (L×W×H) 200×200mm
Motor 11kW
Capacity 2-3ton/h
Theoretical dry cycle time 100 sec.
Max. thickness can be press 2-3mm
Operation method Hand Valve Control
Bale discharging method Push out
Baler dimensions (L×W×H) 3500×2800×1650mm
Weight 4000KG







3. Description:

1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.

2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



6. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

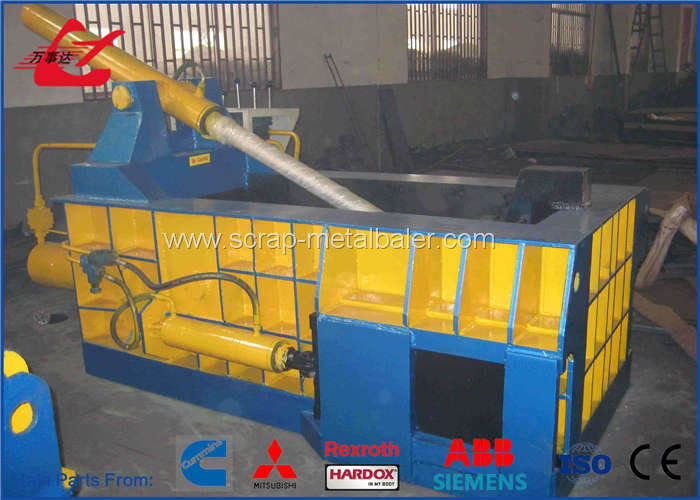

7. Photos:

Aluminum Sheets Scrap Metal Baler Compactor With 125 Ton Press force 0Aluminum Sheets Scrap Metal Baler Compactor With 125 Ton Press force 1
