Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43W-6300A
High Light:

scrap metal recycling machine

,

Scrap Metal Cutting Machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 50 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Specifications
Product Name: Scrap Metal Shear
Feeding Mouth: 3700x2500mm
Outout Mouth: 1500x400mm Or Customized
Motor: 139kW
Capacity: 6-10Ton/h
Blade Length: 1500mm
Motor Brand: Siemens
PLC Brand: Mitsubishi Or Siemens
Product Description

Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine For Metal Recycling Plants

1. Products:

Given our actual development situations at present, this Q43W-4000A Container Metal Scrap Shear Automatic Cutting high Capacity is designed and fabricated through absorbing the advanced workmanship of congeneric products. It is mostly exported to Russia, Ukraine and other counties.



2.Technical data:

Model Q43W-6300A
Cutting Force 6300Kn
Hold force 1180Kn
Length Of Blade 1500Mm
Feeding mouth size 3700×2500mm
Output mouth size 1500×400mm
Motor Power 139kW
Capacity 6-10Ton/h
Dimensions 8300x2250x2900mm
Weight 29000Kgs
Scrap Be cutted Size of scrap be cutted
Round Steel φ 130mm
Square Steel 120×120mm
Angle Steel 200×200×20mm (3pcs)
Channel Steel 400×104×14.5mm
Steel Plate 40×1000mm
I Steel 500×162×16mm







3. Application:

This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.



4. Features:

1. Horizontal structure

2. Different from the product with mechanical transmission system, our hydraulically driven machine has a range of characteristics including small volume, light weight, small inertia of movement, low noise, steady movement, flexible operation, large cutting section, etc.

3. Due to the combination of hydraulic and electrical control, the horizontal metal shear is able to accomplish the shift of single and continuous cutting easily.

4. While cutting, the machine is able to process the materials automatically without manual support. Operators only need to feed the materials for cutting into the compress room continuously consistent with the cutting speed.

5. Our product can be powered by motor or Cummins diesel engine as required.

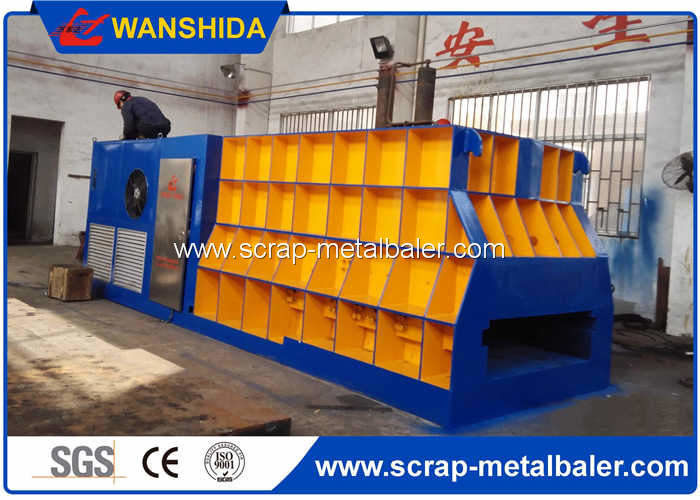

5. Photos:

Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine 0

Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine 1Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine 2Automatic Container Scrap Metal Shear Q43W-6300C Hydraulic Shearing Machine 3
