High Strength Scrap Metal Shredder Machine 22kW Motor WANSHIDA
1 set
MOQ
Negotiable
Price
High Strength Scrap Metal Shredder Machine 22kW Motor WANSHIDA
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43P-1000A
High Light:

metal shredding machine

,

car shredder machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Specifications
Shredder Room: 1010x550mm
Hopper Feeding Mouth: 1010x720mm
Pieces After Shredder: 30x40mm
Motor: 22kW
Guarantee: 1 Year
Overall Size: 3500x900x1600mm
Weight: 3000KGS
Product Name: Scrap Metal Shredder
Product Description

WANSHIDA Two Shafts Scrap Steel Paint Drum Box Shredder



1. Specifications:

It can be applied to shred various of waste. It is widely used in many areas such as the pre-treatment of volume reduction.



2. Application:

1) The machine has a mighty strength to deal with materials. Since the material of the crusher and size of the granule are optional freely. It can be applied to crush various of waste. It is widely used in many areas such as the pre-treatment of volume reduction, oilable and fuelable of plastic waste, pre-treatment of burning the cloaca draff.

2) Machine blades are easy to be replaced.

The machine blades are designed by unaided model and equipped with special fixation to facilitate the assemble and unassembled. It is viable to maintenance and replace the blades without disassembling the machine.

3) High efficiency and good performance, save power, environment-protectable, free of dust.

4) Running on the roller and great treatment ability, the blades are disposed, wearable- resistant and longevity.



3. Technical data:

No. Technical data Remarks
1 Blade Dia. 300 mm
QTY 33 pcs
Thickness 30 mm
Speed 16 rpm
2 Shredder Room 1010×550 mm L×W
3 Hopper Feeding mouth 1010×720 mm L×W
4 Shredder capacity 2-3m3/h
5 Pieces after shredder 30×40 mm L×W
6 Motor 11×2 kW
7 Overall size 3500×900×1600 mm L×W×H
8 Weight 3000 kg




4. Photos:

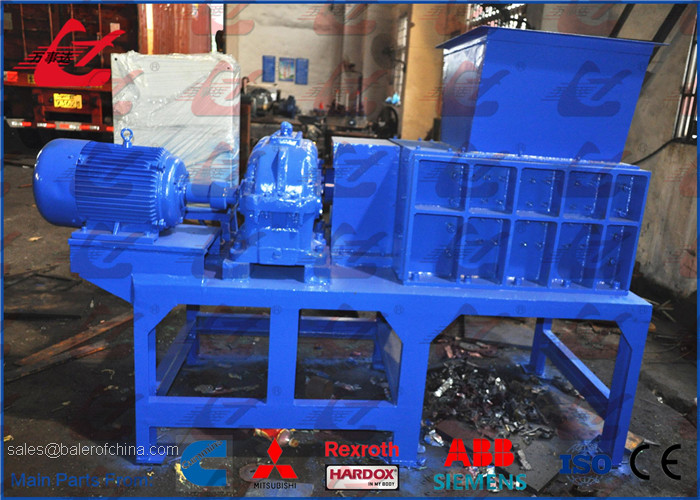

High Strength Scrap Metal Shredder Machine 22kW Motor WANSHIDA 0

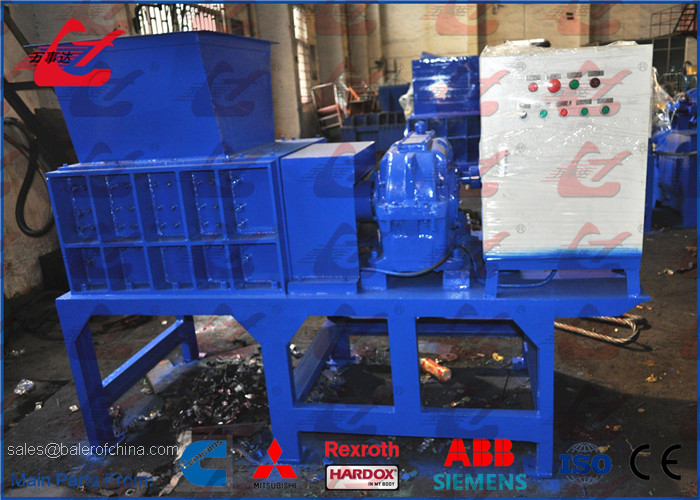

High Strength Scrap Metal Shredder Machine 22kW Motor WANSHIDA 1
