Hydraulic Drive Mode Vertical Baling Machine For Cardboards Plastic PET Bottles
1 set
MOQ
Negotiable
Price
Hydraulic Drive Mode Vertical Baling Machine For Cardboards Plastic PET Bottles
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82-25
High Light:

vertical cardboard baler

,

cotton baling press machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Press Force: Vertical Baling Machine
Bale Size: 1080x700x(-800)mm
Bale Weight: 60-120kg
Motor: 7.5kW
Cycle Time: 31s
Press Room Size: 1100x750x1200mm
Efficiency: 6-8 Bales/h
Weight: 2000KGS
Product Description

Vertical Waste Cardboards Baler Press Machine for Cardboards Plastic PET bottles



1. Product:

Y82-25 Vertical waste cardboards balers can be used to press and bale many kinds of recyclable material, including papers, plastic films, cardboards, and cotton, etc. The baled materials are compactor and are smaller in size, which will reduce the storage space and shipping space, thus enabling you to gain the optimal revenue.

It is equipped with safety interlocks and PLC control system, so it is safe to use and easy to operate.



2. Technical Parameters:

Model Y82-25
Balel Weight 60-120kgs
Bale Size 1080×700×(-800)mm
Press Force 25tons
Efficiency 6-8 bales per hour
Motor Power 7.5kw
Cycle time 31seconds
Dimensions 1350×900×3100mm
Weight

2000Kgs





3. More details:

Vertical waste baler can be used to bale a wide range of materials. The ale width can reach up to 72’’ and bale weight can reach up to 2000lbs.

Feed opening size can be 72’’×36’’.

This vertical waste baler is easy to operate and control.

It is specially designed and enjoys long service life.

To facilitate the unloading, our vertical waste baler is provided with the ejector.

It does not need special foundation during installation, and since it is vertical, it takes up small floor area.

Our Y82-25 vertical waste baler can deal with the waste pet bottles, waste cardboards, newspapers, waste paper, woven bag, fabric and other loose materials baled for ease of delivery and storage. Equipped with a 7.5 kW motor, this baler is energy efficient and eco-friendly, meeting the demands of small recycling plants.

The size of the compress room is allowed to be specially designed to fulfill the demands of users. In general, the standard size of the compress room is 1080x700x1300mm. The weight of bale ranges from 100-300kg depending on the material feeding state.

This Y82 series waste baler is applicable for packing scrap carton, news paper, straws, waste plastics like PET bottle, plastic film, recycle case, etc.


4. Application:
Made by adopting internationally advanced technology and equipment, our waste paper balers are mainly used to compact waste papers and other similar loose materials in normal state and then use specialized packing string to bale them, making them smaller in size. In this way, these waste papers or other loose materials will take up less shipping space, thus reducing the transportation cost.


5. Features:
Our waste paper baler uses hydraulic drive mode. It is designed with rational and compact structure, and it is easy to operate and safe to use.
Characteristics of our waste paper baler include small size, light weight, small inertia, low running noise, stable running, reliable hydraulic characteristic, high operating efficiency, low energy consumption, easy installation and operation, and strong environmental adaptive ability, etc.
This vertical waste baler can not only be used to bale waste papers, but also be applied to bale or compact similar loose materials.





6. Photos:

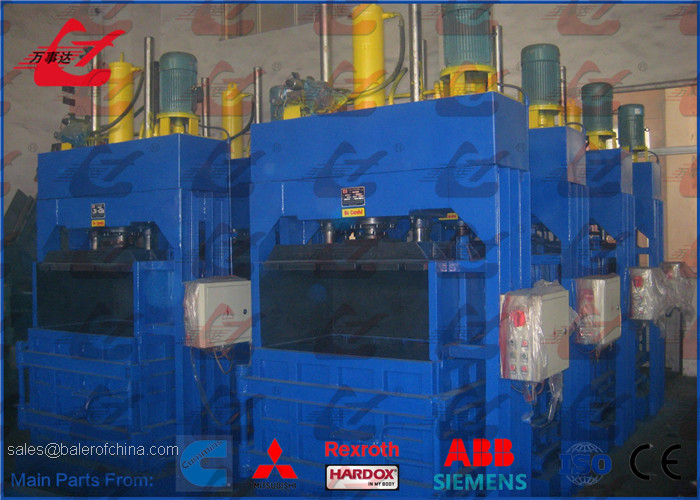

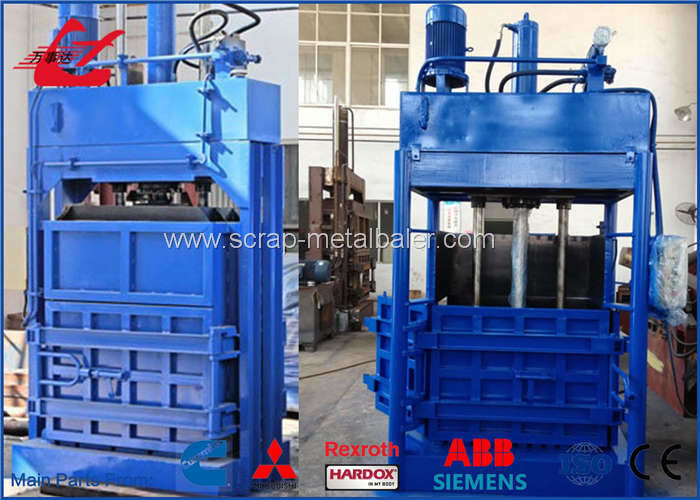

Hydraulic Drive Mode Vertical Baling Machine For Cardboards Plastic PET Bottles 0Hydraulic Drive Mode Vertical Baling Machine For Cardboards Plastic PET Bottles 1
