Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal

Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal

    • Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
    • Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
    • Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
    • Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
  • Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal

    Product Details:

    Place of Origin: China
    Brand Name: WANSHIDA
    Certification: CE and ISO9001
    Model Number: Y83/T-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 25 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Metal Scrap Baling Machine Press Room Size: 1000x600x500mm
    Bale Size: 200×200mm Motor: 11kW
    Capacity: 1200-1500KG/h Bale Discharging: Push Out
    Operation: Hand Valve Control Weight: 4000kgs

    100ton press force Push out Hydraulic Scrap Steel Balers for light metal



    1. Product:

    This Y83/T-100 Push out scrap steel balers are mostly applied in the metal smelting factory and scrap metal recycled station with low requirement on production. It is the smallest one among our metal baling presses. Operated manually, this product makes the bale in small size of 200×200mm convenient for moving and smelting. The bale is extremely suited to be sent to the metal smelting furnace in small size with high efficiency, improving the smelting speed. More information about the scrap metal baler will be obtained from our sales group.



    2. Technical Parameters:

    Scrap Steel Balers-Side Push out
    Model Y83/T-100
    Cylinder pushing force 100 ton
    Maximum working pressure 25MPa
    Compress room size 1000×600×500mm
    Bale dimensions (L×W×H) 200×200mm
    Motor 11kW
    Capacity 2-3ton/h
    Theoretical dry cycle time 100 sec.
    Max. thickness can be press 2-3mm
    Operation method Hand Valve Control
    Bale discharging method Push out
    Baler dimensions (L×W×H) 3500×2800×1650mm
    Weight 4000KG







    3. Description:

    1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.

    2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
    3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
    4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


    4. Brief Introduction of Baling Process
    At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



    5. Optional Extra

    Conveyor Feeding
    Oil heater
    Oil cooler

    Diesel Engine Drive



    6. Applications

    Non Ferrous Metals

    Coppers

    Aluminum Cans

    Aluminum Windows

    Scrap Aluminums

    25 Liter Drums

    Tin Cans

    Steel Shavings

    Aluminum Chips

    Aluminum Sheets

    Aluminum And Copper Wires

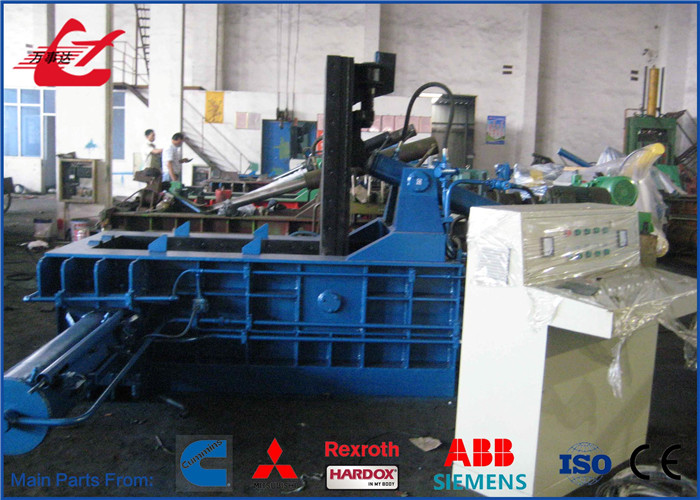

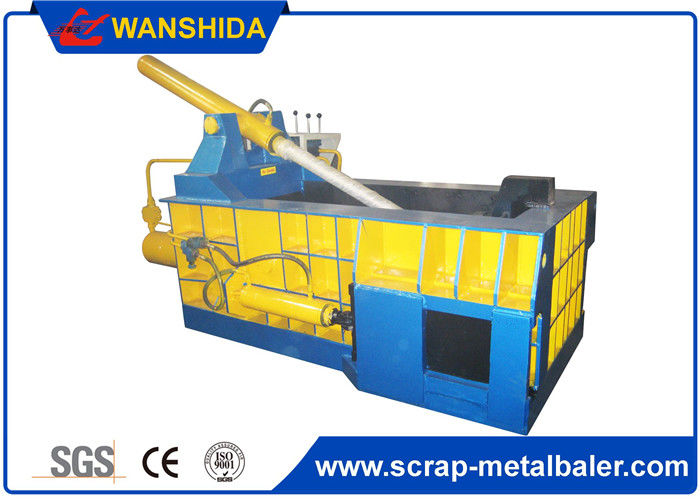

    7. Photos:

    Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light MetalHand Valve Control Hydraulic Metal Scrap Baling Machine For Light MetalHand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
