Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires

Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires

    • Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires
    • Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires
    • Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires
  • Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires

    Product Details:

    Place of Origin: China
    Brand Name: WANSHIDA
    Certification: CE and ISO9001
    Model Number: Y82/W-50A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 35 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Waste Paper Baler Bale Weight: 350KGS
    Bale Size: 600x600x1000mm Or Customized Motor: 20kW
    Dimension: 7000x2000x1980mm PLC Brand: Mitsubishi Or Siemens
    Output Capacity: 2-4t/h Strapping Wire: 4 Wires

    Automatic Waste Paper Baler Baling Press Machine for Waste Carton Plastic Films





    1. Description:

    This Y82W-50A automatic waste paper baler is commonly applied in baling loose materials, such as scrap paper, waste carton, news paper, waste plastic, PET bottles, plastic film and recycle case, straws, etc.



    2.Technical Parameters:

    Model Y82W-50A
    Bale weight 450kg
    Bale size (W×H×L) 600×600×1000
    Press force 50T
    Output capacity 2-4T
    Motor power 20kw
    Strapping wire 4 wires
    Dimensions 7000*2000*1980mm
    Weight 8.5ton







    3. Features

    1) Controlled by PLC system, this baler is equipped with the touch screen for window monitoring, error warning with synchronous indicator diagram, bale length setting and other operations.

    2) The design of floating clamping device on the upper, left and right directions facilitates the automatic distribution of four sided pressure. It makes the machine capable of baling a wide range of materials.

    3) Equipped with 6m long conveyor belt, this automatic waste paper baler is able to load and feed materials automatically. Moreover, it supports automatic binding performance, improving the baling speed.

    4) The pushing cylinder and the bale ejector are connected reliably in spherical structure, prolonging the longevity of oil seal.

    5) There are several shear blades distributed at the feeding inlet increasing the cutting efficiency.

    6) Our automatic waste paper baler adopts the hydraulic circuit design with low noise to increase the working efficiency and decrease the failure rate.

    7) It can be easily mounted without any foundation.

    8) The specific dimensional design of the compress room and the bale is available as required.



    4. Optional Extra

    Conveyor Feeding
    Oil heater
    Oil cooler

    Diesel Engine Drive



    5. Applications

    OCC

    Carton

    Cardboard

    Dry Soft Plastic

    PET Bottles

    Plastic film

    White Goods

    Shred paper

    News Paper

    Scrap Tire

    HDPE Jars

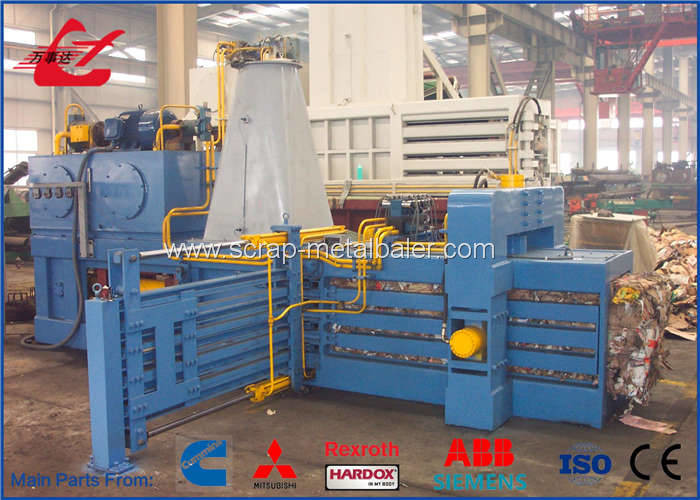

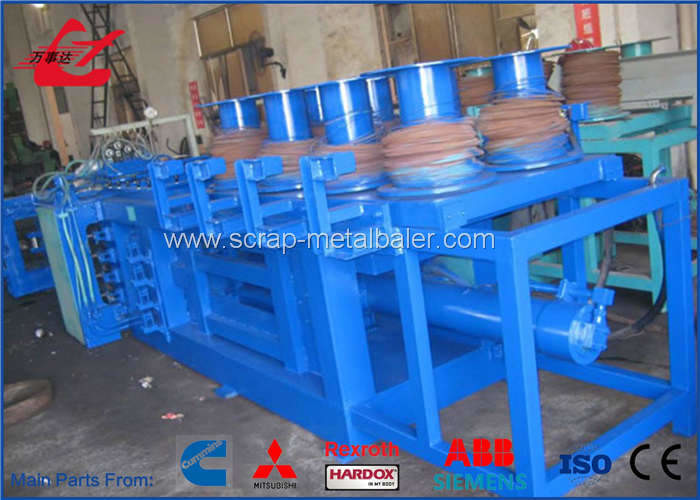

    6. Photos:

    Electrical Control Newspaper Compactor Waste Paper Baling Machine 4 WiresElectrical Control Newspaper Compactor Waste Paper Baling Machine 4 Wires
