Four Pressing Guide Cardboard Press Machine , 100 Ton Waste Hydraulic Cardboard Baler

Certification
Good quality Waste Paper Baler for sales
Good quality Waste Paper Baler for sales
Thank you so much for your engineer comming for installation. The 125ton PET bottles baler is working perfect now. --Mexico

—— Mr. Augusto Morales

The baler shear is working very well since 2010. It save labour cost too much for us and bring us many profit. Thank you! --Russia

—— Mr. Andrew

I'm Online Chat Now

Four Pressing Guide Cardboard Press Machine , 100 Ton Waste Hydraulic Cardboard Baler

China Four Pressing Guide Cardboard Press Machine , 100 Ton Waste Hydraulic Cardboard Baler supplier

Large Image :  Four Pressing Guide Cardboard Press Machine , 100 Ton Waste Hydraulic Cardboard Baler

Product Details:

Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Detailed Product Description
Product Name: Plastic Bottle Baler Bale Size: 1100x750x(700-900)mm
Bale Weight: 350-500kg Motor: 15kW
Cycle Time: 80s Press Room Size: 1470x1200x3600mm
Efficiency: 4bales/h Weight: 8000KGS

100Ton Vertical Waste OCC Cardboards Baler Press Machine



  1. Product:

Y82-100 Vertical waste cardboards balers can be used to press and bale many kinds of recyclable material, including papers, plastic films, cardboards, and cotton, etc. The baled materials are compactor and are smaller in size, which will reduce the storage space and shipping space, thus enabling you to gain the optimal revenue.

It is equipped with safety interlocks and PLC control system, so it is safe to use and easy to operate.



2. Technical Parameters:

Model Y82-100 Vertical Waste OCC Cardboards Baler
Balel Weight 350-500kgs
770-1210 pound
Bale Size 1100×750×(700-900)mm
43×30×(27.5-35)inch
Press Force 100Tons
Efficiency 4bales per hour
Motor Power 15kw
20Hp
Cycle time 80seconds
Dimensions 1470×1200×3600mm
57.8×47.2×141.7inch
Weight 8tons
17600Pound







3. More details:

Perfect for pressing OCC cardboards, scrap copper,scrap aluminum, scrap stainless steel.
Close the feeding material gate,the baler auto working.
With safety button on feeding material gate.
Big feeding room
Stable pressing with four pressing guide
Safety locking door and two safety protection system
Open the door,the electric will be shutted off.
Automatic steel chains ejecting bale system.
Bale size can be adjusted-DIY
Robust building
CE marked

This Y82 series waste baler is applicable for packing scrap carton, news paper, straws, waste plastics like PET bottle, plastic film, recycle case, etc.


4. Application:
Made by adopting internationally advanced technology and equipment, our waste paper balers are mainly used to compact waste papers and other similar loose materials in normal state and then use specialized packing string to bale them, making them smaller in size. In this way, these waste papers or other loose materials will take up less shipping space, thus reducing the transportation cost.


5. Features:
Our waste paper baler uses hydraulic drive mode. It is designed with rational and compact structure, and it is easy to operate and safe to use.
Characteristics of our waste paper baler include small size, light weight, small inertia, low running noise, stable running, reliable hydraulic characteristic, high operating efficiency, low energy consumption, easy installation and operation, and strong environmental adaptive ability, etc.
This vertical waste baler can not only be used to bale waste papers, but also be applied to bale or compact similar loose materials.





6. Photos:

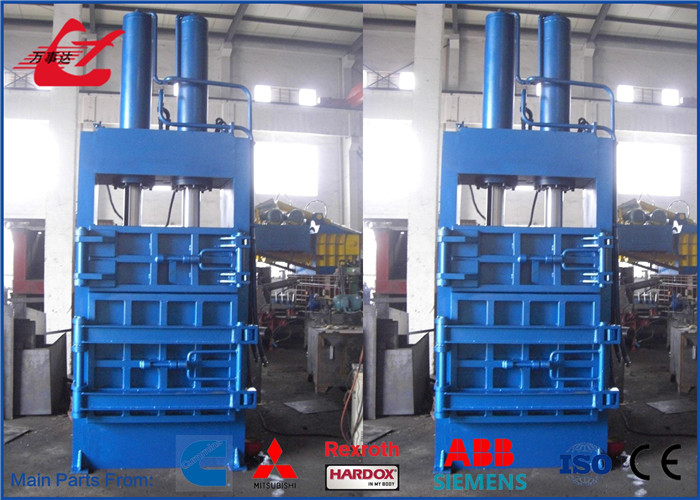

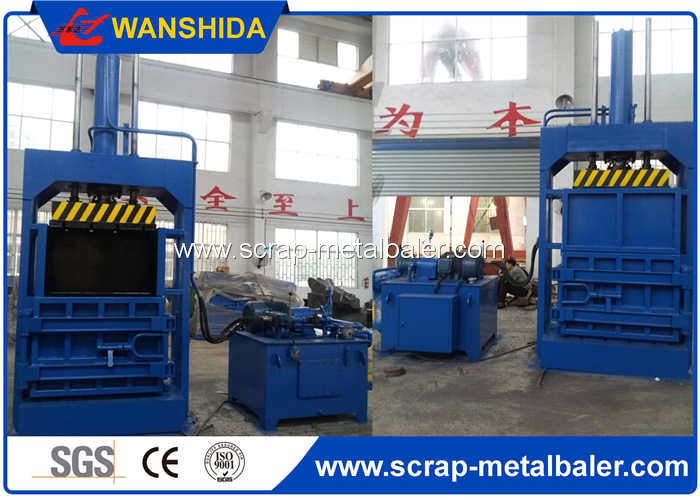

Four Pressing Guide Cardboard Press Machine , 100 Ton Waste Hydraulic Cardboard Baler





Gloden supplier for world famous brand:

Aluminum Cans Metal Baler
