PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG

PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG

PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG
PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG

Product Details:

Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/T-125Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Product Name: Scrap Metal Baler Press Room Size: 1400x700x700mm
Bale Size: 250×250mm Motor: 22kW
Capacity: 1500-1800KG/h Bale Discharging: Push Out
Operation: PLC Automatic Control Weight: 6500kgs
High Light:

scrap baler machine

,

scrap metal compactor

Y83/T-125Z Scrap Metal Baler Compactor Machine PLC automatic control



1. Product:

This Y83/T-125Z Aluminum scrap metal balers are the most popular product of our company. It’s highlight resides in that the compressed bale density is higher than that of any other type of balers. The bale is tight, compact and density is very high.



Our scrap metal baler is configured with shearing blades on the lid and sides of compress room. Therefore, the large sized material can be cut first and then be compressed. The bale discharging method is side push out, improving the safety of operation and making the bale convenient for transportation.



2. Technical parameters:

Aluminum scrap metal Balers
Model Y83/T-125Z
Cylinder pushing force 125ton
Maximum working pressure 25MPa
Compress room size 1400×700×700mm
Bale dimensions (L×W×H) 250×250mm
Motor 22kW
Capacity 4ton/h
Theoretical dry cycle time 100
Max. thickness can be press 3mm
Operation method PLC Auto Control
Bale discharging method Push out
Baler dimensions (L×W×H) 4300×2700×2100mm
Weight 6500KG

























































3. Description:

1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.

2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

          Diesel Engine Drive



6. Applications

            Non Ferrous Metals

            Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

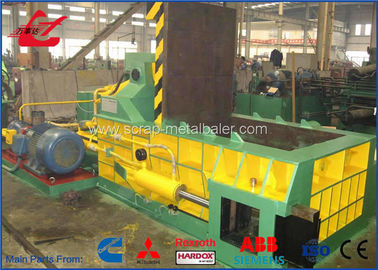

7. Photos:

PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG 0PLC Automatic Control Aluminum Can Compactor Machine , Scrap Steel Baler Machines 6500KG 1
