Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size

Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size

    • Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size
    • Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size
    • Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size
  • Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size

    Product Details:

    Place of Origin: China
    Brand Name: WANSHIDA
    Certification: CE and ISO9001
    Model Number: Y83/T-125

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 25 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Scrap Metal Baler Press Room Size: 1400x700x700mm
    Bale Size: 250×250mm Motor: 22kW
    Max. Thickness Can Be Press: 3mm Bale Discharging: Push Out
    Operation: Hand Valve Control Weight: 5000kgs

    Y83/T-125 Scrap Waste Compactor Machine export to Europe



    1. Product description:

    Our Scrap Metal Compactor also named Scrap Metal Baler and hydraulic metal baler are applicable in recycling companies, steel plants, ferrous & non-ferrous smelting industry to press metal scrap (scrap steel, scrap cars, scrap copper, scrap aluminum, scrap stainless steel, discarded automobiles, metal sheet, steel scrap iron) into acceptable furnace charges, so as to reduce cost of transportation to speed up furnace charging.



    Our scrap metal baler is configured with shearing blades on the lid and sides of compress room. Therefore, the large sized material can be cut first and then be compressed. The bale discharging method is side push out, improving the safety of operation and making the bale convenient for transportation.



    2. Technical parameters:

    Aluminum scrap metal Balers
    Model Y83/T-125
    Cylinder pushing force 125ton
    Maximum working pressure 25MPa
    Compress room size 1400×700×700mm
    Bale dimensions (L×W×H) 250×250mm
    Motor 22kW
    Capacity 4ton/h
    Theoretical dry cycle time 100
    Max. thickness can be press 3mm
    Operation method Hand Valve Control
    Bale discharging method Push out
    Baler dimensions (L×W×H) 4300×2700×2100mm
    Weight 6000KG

























































    3. Description:

    1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.

    2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
    3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
    4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


    4. Brief Introduction of Baling Process
    At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



    5. Optional Extra

    Conveyor Feeding
    Oil heater
    Oil cooler

              Diesel Engine Drive



    6. Applications

                Non Ferrous Metals

                Coppers

    Aluminum Cans

    Aluminum Windows

    Scrap Aluminums

    25 Liter Drums

    Tin Cans

    Steel Shavings

    Aluminum Chips

    Aluminum Sheets

    Aluminum And Copper Wires



    7. Photos:

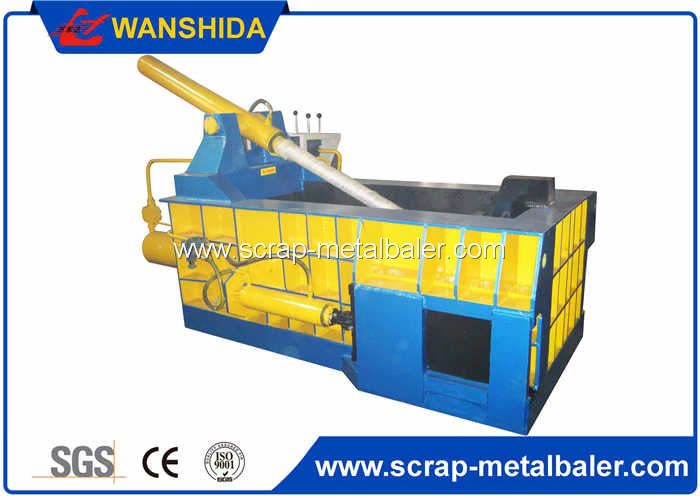

    Copper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale SizeCopper Wires Scrap Metal Baler Baling Equipment 250 × 250mm Bale Size
