Professional Manufacturer of Hydraulic Scrap metal Balers
Portable Metal Baler Logger，Alligator Shears, Scrap Shearing Balers
|Place of Origin:||China|
|Certification:||CE and ISO9001|
|Minimum Order Quantity:||1 set|
|Packaging Details:||5000KGS, Seaworthy packing|
|Delivery Time:||25 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||30 sets/month|
|Product Name:||Scrap Metal Baler||Press Room Size:||1300x600x600mm|
|Capacity:||1000-1200KG/h||Max. Thickness Can Be Press:||3mm|
|Motor Brand:||Siemens||PLC Brand:||Mitsubishi|
hydraulic metal baler,
scrap metal compactor

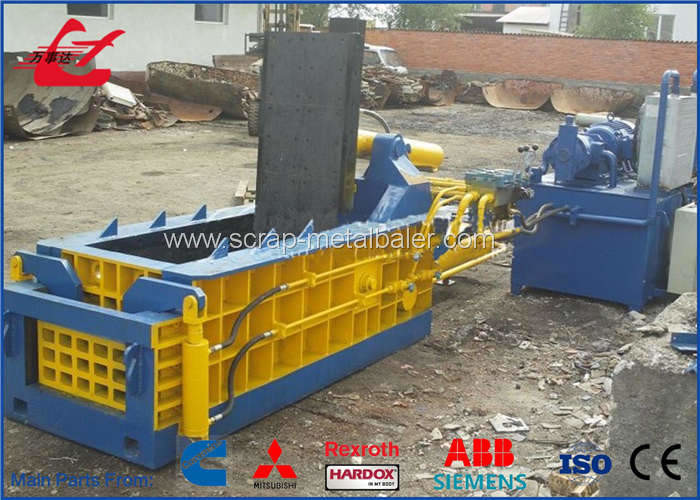

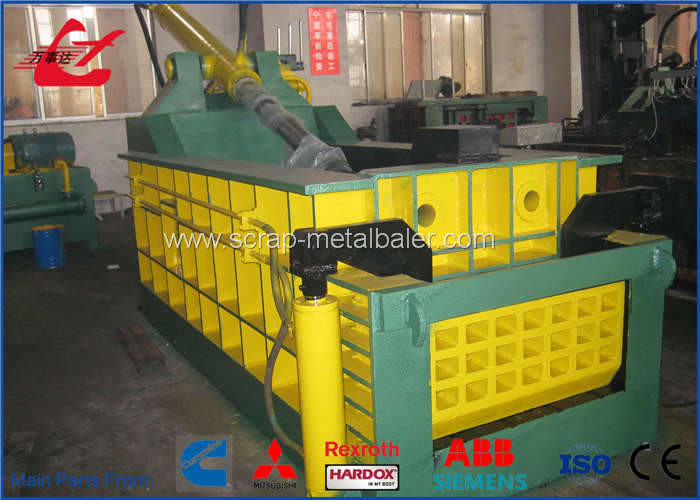

Y83Q-135 Copper Wire Scrap Metal Baler CE Certificate
1. Product Details:
Our Y83Q-135 Forward out Aluminum scrap metal baler pushes the bale out forwardly. It is mainly applied in metal smelting in small and medium scale, as well as waste metal processing and recycling.
Manipulated by hand, this machine specializes in processing the light and thin materials. Its compressed bale is applicable for small processing furnace in the steel plant. The bale is about 240mm high and its length is varied by different quantity of feeding materials.
Y83-135B hydraulic metal baler is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so as to reduce the cost of transportation & smelting, to speed up furnace charging.
|Nominal force (kN)||1350|
|Dimension of compress room (L*W*H) (mm)||1300*600*600|
|Bale dimension (L*W*H)(mm)||(50-300)*600*240|
|Bale density (kg/m3 )||>1800|
|Single cycle time(s)||<150|
|Bale discharging and operation||Forward-out, hand valve control|
4. Quality: This machine apply to ISO9001: 2000 standard.
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.
6. Optional Extra
Diesel Engine Drive
Non Ferrous Metals
25 Liter Drums
Aluminum And Copper Wires
Contact Person: Cherry Feng
