Professional Manufacturer of Hydraulic Scrap metal Balers
Portable Metal Baler Logger，Alligator Shears, Scrap Shearing Balers
|Place of Origin:||China|
|Certification:||CE and ISO9001|
|Minimum Order Quantity:||1 set|
|Packaging Details:||5000KGS, Seaworthy packing|
|Delivery Time:||25 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||30 sets/month|
|Product Name:||Scrap Metal Baler||Press Room Size:||1450x600x600mm|
|Capacity:||2000-2800KG/h||Bale Discharging:||Front Out|
scrap baler machine,
scrap metal compactor

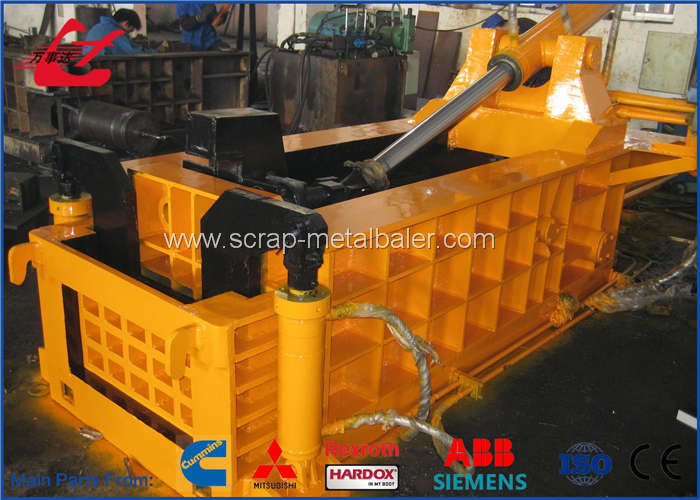

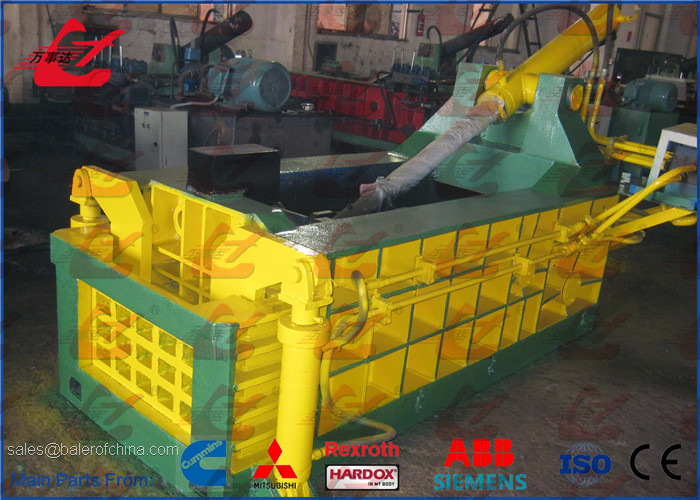

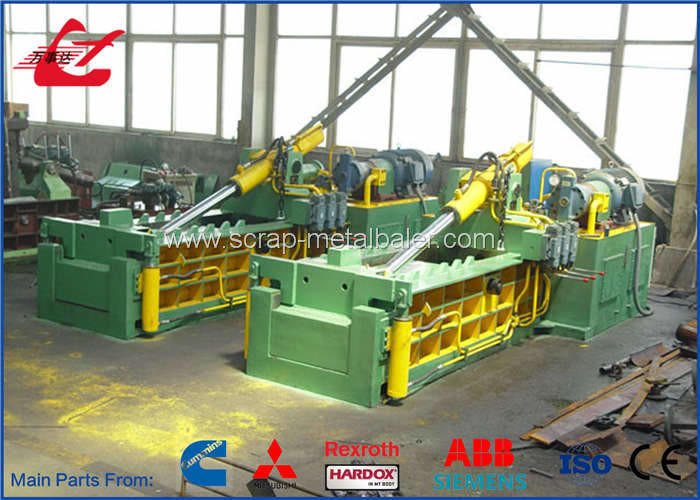

WANSHIDA Scrap Metal Baler Bale Forwarder Out
This Y83Q-160 Forwarder out Scrap Metal Baling Press is forward-out machine that is commonly used in the metal smelting plant with small and medium scaled production, as well as the waste metal recycled station.
It is usually manipulated manually to process the light and thin materials. The finished bale is applicable for small processing furnace in the steel plant. In general, the bale is about 200mm high and 600mm wide. Its length depends on the quanity of fed materials. If cutomers want more information about this scrap metal baler, please contact our professional sales department.
2. Technical Parameters:
|Y83Q-160 Forwarder out Scrap Metal Baling Press (Bales Front Out)|
|Cylinder pushing /shearing force||160 ton|
|Maximum working pressure||25MPa|
|Compress room size||1450×600×600mm|
|Bale dimensions (L×W×H)||(400-600)×600×300mm|
|Theoretical dry cycle time||160 sec.|
|Baler dimensions (L×W×H)||6500×2300×2000mm|
1) This forward out baler is driven be hydraulic devices. In the compact structure with rational design, it is small in volume and light in weight. Moreover, it works with small inertia of movement, low noise, stable but flexible operation and other highlights.
2) Our machine utilizes the integrated hydraulic and electrical control. It is easy for use and maintenance.
3) This forward out baler is featured by strong adaptability to diversified working conditions and wide applicable range. It can be used as the machining equipment in the metal recycling unit and for furnace charge in the casting room of factory.
4) Aside from low energy consumption, this product also incorporates such characteristics as easy installation, safe and dependable use, high efficiency, low cost and so on.
4. Optional Extra
Diesel Engine Drive
Non Ferrous Metals
25 Liter Drums
Aluminum And Copper Wires
