Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard

1 set
MOQ
Negotiable
Price
Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Scrap Metal Baler
Model: Y83-200
Press Force: 200ton
Press Room Size: 1600x1000x800mm
Bale Size: 400x400mm
Motor: 37kW
Capacity: 2000-3000kg/h
Max. Thickness Can Be Press: 4mm
Overall Size: 4680×3000×2450mm
Usage: Waste Metal Recycling Yard
Scrap Can Be Press: Metal Copper Aluminum Steel Scrap
High Light:

scrap baler machine

,

scrap metal compactor

,

Top Turn Out Metal Scrap Baler

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-200
Payment & Shipping Terms
Packaging Details: 5000KGS, Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard


We are China Scrap Metal Baler Factory in Jiangsu Province.


1. Product:

The Y83-200 Wanshida Metal Baler is mostly applicable for metal smelting factory with medium output, as well as the waste metal recycling station. It is a manually operated machine. Its compress room size can be chose 1600x1200x800mm and 1800x1400x900mm as customers like. The dimension of the compressed bale is about 400x400mm in size.



Based on the demands of customers, the waste scrap metal baler can be matched with 37kW or 44kW power supply. It’s output is able to reach 4-6tons per hour. More information please contact our sales department.



2. Technical Specifications:

Waste Steel Bailer-Turn out
Model Y83-200
Cylinder pushing /shearing force 200 ton
Maximum working pressure 25MPa
Capacity 4-6 tons/h
Compress room size 1600×1000×800mm
Bale dimensions (LxWxH) (~500)×400×400mm
Theoretical dry cycle time 100 sec.
Max. thickness can be press 4.5mm
Motor 37kW
Baler dimensions (LxWxH) 4680×3000×2450mm
Weight 15000KG









































3. Details:

Driven by hydraulic system, this turn out baler is highlighted by reasonable design, compact structure, small volume, light weight, small inetia of movement, low noise, stable traveling performance, flexible operation and so on.


 Under the integrated hydraulic and electrical control, it is easy for operation and maintenance.


With wide applicable range, this product can work as the processing equipment in scrap metal recycling unit. It is also suitable for processing the furnace charge in the foundry of factory. The equipment offers powerful adaptability for the working conditions.


Our turn out baler performs with low energy consumption, easy installation, secure operation, high working efficiency, low price and other merits.



4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

5. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires





6. Photos:

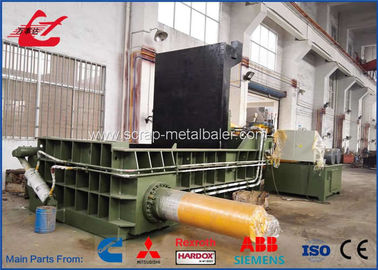

Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard 0

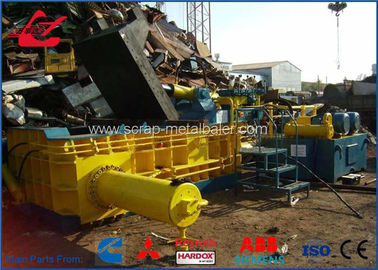

Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard 1

Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Aluminum Steel Scrap recycling yard 2
