Hydraulic Alligator Shear Machine For Metal Scrap Cutting Q43-1200

1 set
MOQ
Negotiable
Price
Hydraulic Alligator Shear Machine For Metal Scrap Cutting Q43-1200
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Alligator Shear
Blade Length: 600mm
Jaw Size: 285mm
Motor: 15kW
Scrap Can Be Cut: D45mm Or 40x40mm
Press Scrap Force: 80kN
Operation: Button Control
PLC Brand: Mitsubishi Or Siemens
High Light:

scrap processing machines

,

Scrap Metal cutter

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43-1200
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

Q43-1200 Hydraulic Metal Shear Alligator Shearing Machine For Metal Scrap Cutting 15kW Motor



1. Product:

This Q43-1200 alligator scrap metal shear is suitable for working in the small and medium scaled metal processing factory, steel plant, scrap metal recycling place, etc. Popular among the customers from South Africa, this product has been ordered for times continuously by them.



In general, the hydraulic drive facilitates the automation of the machine. Depending on diversified control valves and especially the combination of hydraulic and electrical control, this alligator shear easily accomplishes complicated automatic working cycle. Additionally, the machine is operated through buttons with manual material feeding and automatic shearing. If you want learn more about this product, our specialized sales team will help you sincerely.



2. Technical Parameters:

Model Q43-1200
Cutting Force 1200Kn
Press Scrap Force 80Kn
Length Of Blade 600Mm
Jaw Size 285Mm
Motor Power 15 Kw
Cycle Time Sec
Dimensions mm
Weight Kgs
Scrap Be cutted Size of scrap be cutted
Round Steel Φ45mm
Square Steel 40×40mm
Angle Steel 100×100×10mm
Channel Steel 180×68×8mm
Steel Plate

25×140mm







3. Description:

The major strong points of the alligator shear are balanced and steady transmission, stable running speed against load change. Controlled by buttons, the machine is able to accomplish the automatic cutting and manual feeding. Highly praised by customers from Russia and Ukraine, this product has been sold nearly 300pcs to these customers in the past two years.



This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.



4. Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
Operation Mode
Special design is in consistent with customers' needs. This machine can apply manual feeding device, manual shearing system for single cutting or automatic continuous cutting system. As to the small sized machine, the foot pedal can be used for control.


5. Features
1) Under the hydraulic drive, this alligator shear is safe, reliable and convenient for manipulation.
2) The blade opening length varies, including 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm and 1800mm. The shearing force is classified into eight grades, ranging from 63ton to 500ton. Users can select the machine with different force and blade opening size in certain range based on the working scale and shearing requirements.
3) It doesn't need the foot bolts to install the machine.
4) At the place where there is no power supply, the equipment can be powered by the diesel engine.

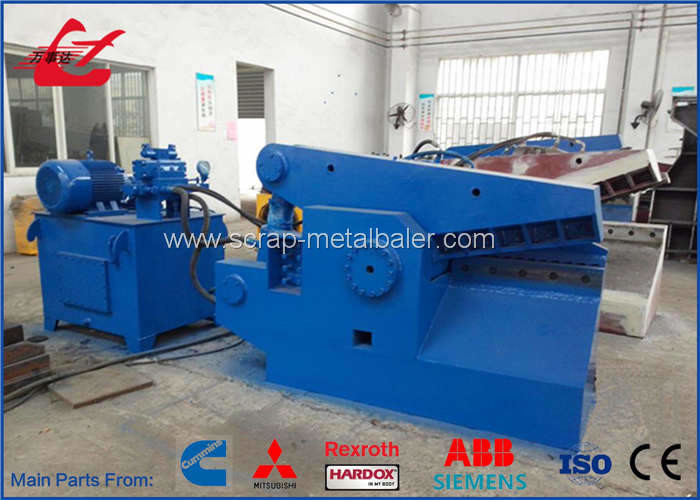

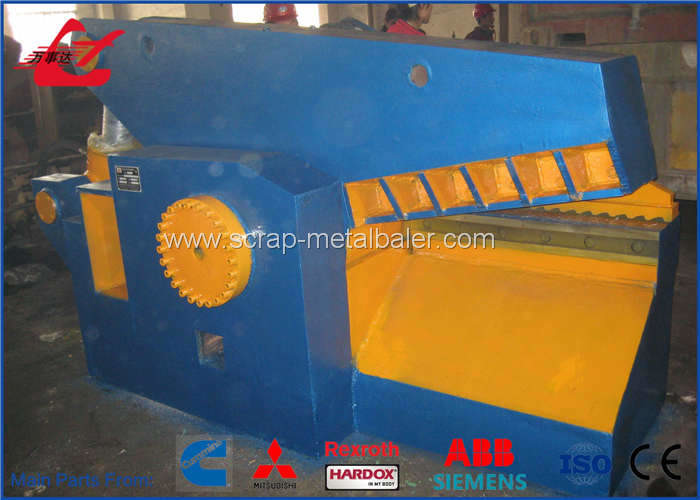

6. Photos:

Hydraulic Alligator Shear Machine For Metal Scrap Cutting Q43-1200 0Hydraulic Alligator Shear Machine For Metal Scrap Cutting Q43-1200 1
