Sawdust Metal Briquetting Press Machine For Aluminum Chips Copper sawdust Cast Iron Chips Make Briquette
1. Products:
This Y83-2500 china scrap metal briquetting presses is mainly applied in the aluminum alloy section plant, steel casting foundry, aluminum casting factory, copper casting plant, etc. It compresses the waste metal into briquette for melting again instead of the scrap steel, pig iron, aluminum ingot and waste copper. This machine reduces the melting loss of materials, significantly increasing the utilization of waste metal.
The scrap metal briquette press can be operated manually or automatically by PLC. Moreover, the optional feeding system can be mounted to meet the needs of customers. Without heating or adding any additives, this product is able to press various granular or powder cast iron, aluminum, magnesium, titanium, molybdenum and other metal materials into high density cylindrical briquettes, which will not become loose before thrown into the furnace.
2. Application:
Y83-2500 Scrap Briquetting Press is applied to compress sawdust of steel, iron, aluminum & brass into blocks of high density to reduce burning loss in smelting, to make recycling & smelting easy and convenient. This machine is especially useful in casting plants substituting iron sawdust for cast iron as raw materials.
3. Specifications:
| Nominal Force(kN) | 2500 |
| Briquette Size(mm) | Φ120×(50-60) |
| Pressure on the bale(kN) | 220 |
| Power(kW) | 18.5 |
| Capacity(kg/h) | 800 (Cast iron sawdust) |
| Operation | Manual or PLC semi-automatic operation |
| Hydraulic drive, operation stable, no vibration, safe & reliable. Simple underground footing needed. |
|
4. Structural Style
This scrap metal briquette press varies in vertical and horizontal structure. Therein, the vertical product is equipped with or without feeding cylinder. The diameter of bale can be designed in the designated range according to users' need. If there is no special requirement, the machine that weighs less than 200ton is structured with welded frame. With the weight ranging from 200ton to 315ton, the machine is designed with welded frame or four columns. Yet the product weighing over 500ton uses four columns.
5. Operating Methods
Our scrap metal briquette press can be designed for manual operation, single automatic operation or continuous automated manipulation. Users are free to select the PLC system for controlling the automatic operation as they want.
6. Quality: This machine apply to ISO9001: 2000 standard.
7. Service:
1) One year guarantee and lifelong maintenance;
2) Any problem, you can call us directly.

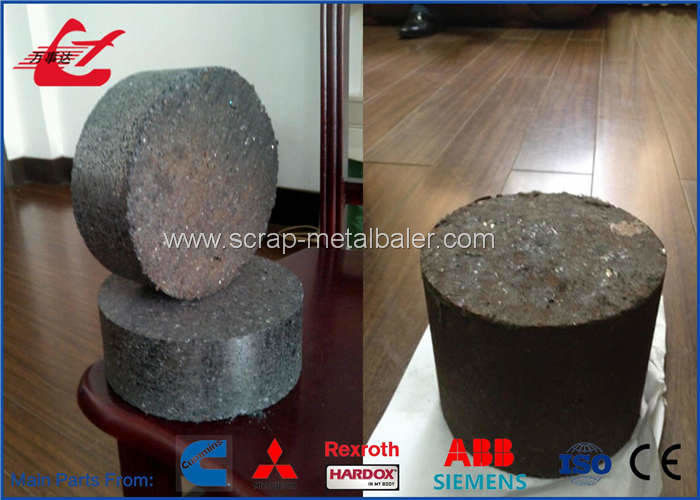

8. Photos:
