Portable Metal Scrap Baler Logger For Light Metal Waste Compact

1 set
Portable Metal Scrap Baler Logger For Light Metal Waste Compact
Features Gallery Product Description Request A Quote
Press Force: 160ton
Press Room Size: 5860x3100x1070mm
Bale Size: (1000-1800)0x650×650mm
Diesel Engine: 86kW
Product Name: Scrap Baler Logger
Model: Mobile
Operation: PLC Automatic Control/Remote Control
Dimension: 13300x2400x2710mm
High Light:

mobile Baler


scrap metal recycling equipment

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/D-5800A1
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 50 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

Portable Scrap Metal Baler Logger For Light Metal Waste Compact into Bales with Feeding Grab

1. Product:

This Y83/D-5800A1 Trailer mounted Metal Scrap Baler Logger is mainly suitable for the Car Bodies Press and vehicles baling into bales, metal smelting factory with medium and large scaled output, metal processing and recycling plant and other places. For the customers in Russia and Ukraine, this product is extremely popular and it is one of our best sellers. Its outstanding stong points are high stable performance, low failure rate, high production efficiency, high density of bales and so on.

Customers can request fit on the trailer or without trailer, with or without grab, press room size, bale size, power supply by diesel or electric motor.


This scrap metal baler logger fully expresses the concept of mobility and versatility. Compared to conventional baling machine, our trailer mounted scrap baler logger needs smaller space and is mounted on trailers in order to work in different working environments.

2. Details:

1) Our trailer mounted scrap baler logger is available in two types of power supplies which are electric motor and diesel engine. The diesel engine powered baling machine is extremely convenient for places providing no power. Detailed information please ask for our sales team.

2) Friendly operator interface control or remote control delivers moch easier operation and lower labor cost.

3) This range of scrap baler logger adopt clamping method for compression, and operational grap is available to meet your application needs. Moreover, if you want more personal operation room or more inforamtion about the scrap handling equipment, please feel free to contact us.

3. Advantage of the diesel engine for scrap baler logger

1) Highly distinguished by its utmost loading capacity and power supply.

2) Turbo charger delivers superior knock resistance.

3) Simple structure with no ignition system allows for convenient maintenance and long service life.

4) Diesel contains more energy release and higher compression. Higher compression leads to higher energy efficiency.

5) Being irrespective of working environment, the diesel engine allows scrap metal baler logger to work in places even with no electric power supply.


4. Technical parameters:


Scrap Metal Press Factory
Model Y83/D-5800A1
Cylinder pushing /shearing force 240 ton
Maximum working pressure 20MPa (Max. 25MPa)
Compress room size 5860×3100×1070mm
Bale dimensions (L×W×H) 500×650x650mm
Capacity 5-7 tons/h
Theoretical dry cycle time 130 sec.
Max. thickness can be press 4mm
Diesel engine 86kW
Operation method PLC control baling, grab for feeding
Bale discharging method by grab
Weight 43000(kgs)
Baler dimensions (L×W×H) 13300×2400×2710mm



5. Photos:

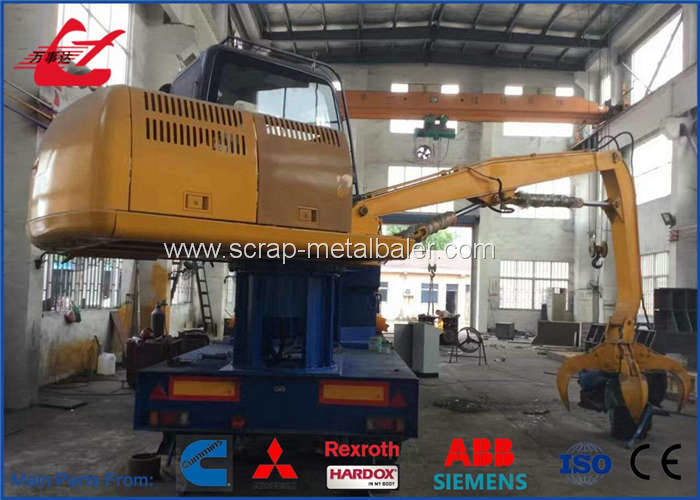

Portable Metal Scrap Baler Logger For Light Metal Waste Compact 0

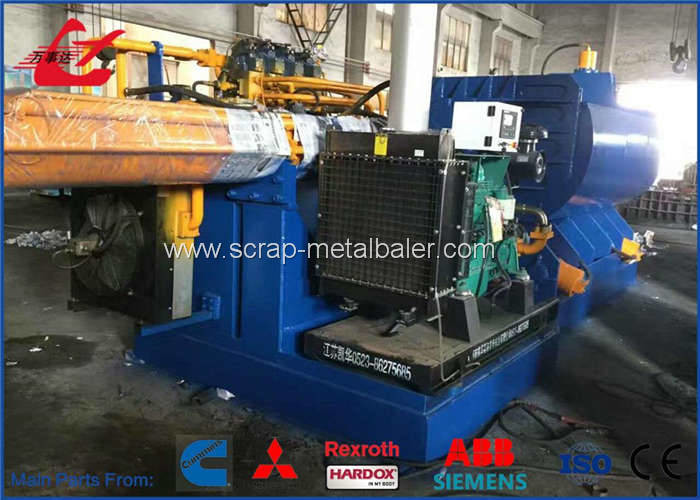

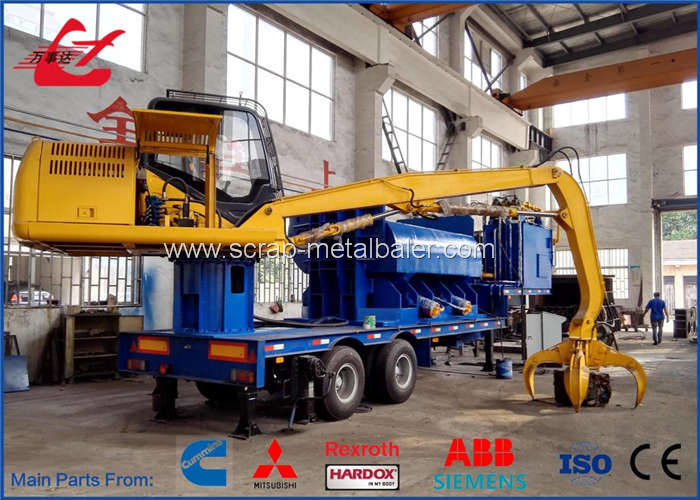

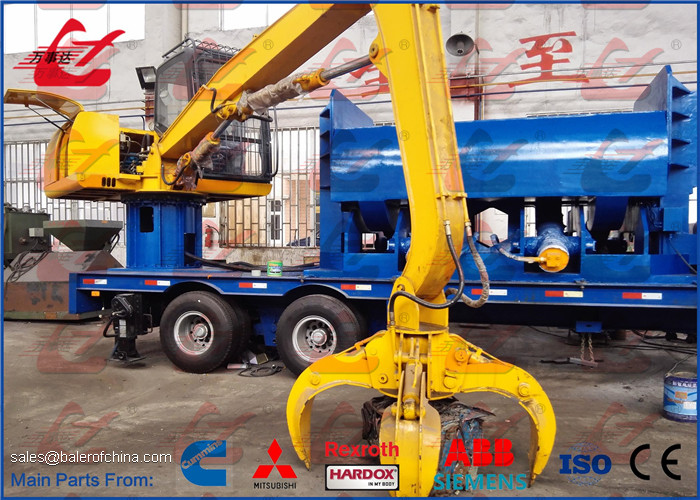

Portable Metal Scrap Baler Logger For Light Metal Waste Compact 1Portable Metal Scrap Baler Logger For Light Metal Waste Compact 2
