High Capacity Metal Briquetting Machines Aluminum Sawdust Briquetter Making Machine

1 set
High Capacity Metal Briquetting Machines Aluminum Sawdust Briquetter Making Machine
Features Gallery Product Description Request A Quote
Product Name: Metal Briquetting Machines
Briquetter Size: D180x(70-100)mm
Capacity: 2000-3000kg/h(Cast Iron Sawdust)
Motor: 45kW
Operation: PLC Automatic Control
PLC Brand: Mitsubishi Or Siemens
High Light:

metal chip briquetter


aluminium briquetting machine

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-6300
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Product Description

High Capacity Metal Chips Briquetting Press Machine Aluminum Sawdust Briquetter Making Machine


1. Products:

Our Y83-6300 scrap metal briquette press gets the metal scrap briquetted for second fusion instead of using the waste steel, pig iron, aluminum ingot and scrap copper directly as raw materials, lessening the melting loss and improving the utilization of waste materials. It is commonly applied in the aluminum alloy section plant, diverse casting plants of steel, aluminum, copper and other materials.
This scrap metal briquette press is configured with PLC for automatic operation. The feeding system is also adopted, keeping high efficiency. With the diameter of 160mm, 180mm and 200mm and the height of 300mm, the briquette can be specially designed in size to fulfill the demands of users.

2. Specifications:

Model Y83-6300
Cylinder pushing /shearing force 630 ton
Maximum working pressure 25MPa
Oil tank capacity 1800L approx.
Capacity 2000-3000kgs/h
Bale dimensions (LxWxH) D180x(70-100)mm
Theoretical dry cicle time 20 sec.
Motor 45kW
Operation method

PLC Automatic Control

Button Control


Weight 18000 (kgs)
Machine dimensions (LxWxH)






3. Application:

Under the situations that it is not heated or added with additives, the scrap metal briquette press is capable of pressing diversified granular and powdered materials into high density cylindrical briquettes that are hard to become loose. It processes the waste materials like scrap steel, cast iron, pig iron, aluminum ingot, waste copper, magnesium, titanium and molybdenum for secondary fusion instead of using them directly.
Our product makes it easy to recycle, smelt, store and transport the scraps. Moreover, it reduces the cost and melting loss so that the utilization rate of the waste is increased.
This product is commonly seen in the aluminum alloy section plant, steel, aluminum and copper casting plants, etc.


4. Structural Style
This scrap metal briquette press varies in vertical and horizontal structure. Therein, the vertical product is equipped with or without feeding cylinder. The diameter of bale can be designed in the designated range according to users' need. If there is no special requirement, the machine that weighs less than 200ton is structured with welded frame. With the weight ranging from 200ton to 315ton, the machine is designed with welded frame or four columns. Yet the product weighing over 500ton uses four columns.


5. Operating Methods
Our scrap metal briquette press can be designed for manual operation, single automatic operation or continuous automated manipulation. Users are free to select the PLC system for controlling the automatic operation as they want.


6. Features:
1) Due to the hydraulic drive, the machine runs stably and reliably.
2) The vertical product needs simplified foundation yet the horizontal machine doesn't need.
3) Under the control of PLC, this scrap metal briquette press possesses strong anti-interference capacity, high level of automation and ease of operation.
4) Based on the demands of users, this product can be equipped with automatic feeding and discharging devices to improve the production efficiency and decrease the labor intensity.


7. Quality: This machine apply to ISO9001: 2000 standard.


8. Service:
1) One year guarantee and lifelong maintenance;
2) Any problem, you can call us directly.

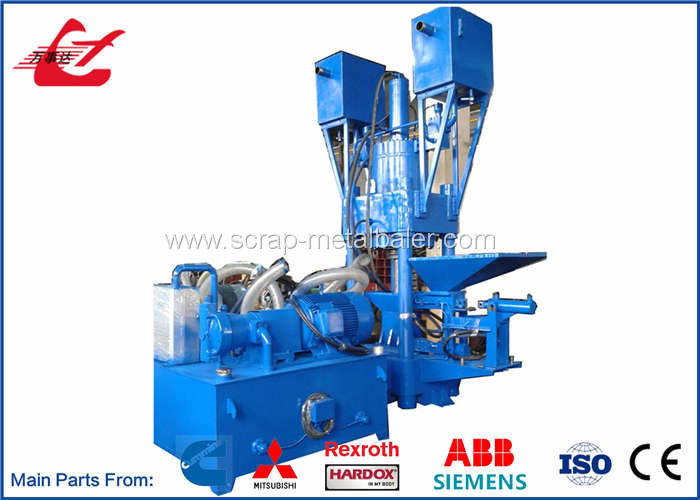

9. Photos:

High Capacity Metal Briquetting Machines Aluminum Sawdust Briquetter Making Machine 0High Capacity Metal Briquetting Machines Aluminum Sawdust Briquetter Making Machine 1
