Fully Automatic Balers Scrap Metal Press Machine For HMS Scrap Car Body

1 set
MOQ
Negotiable
Price
Fully Automatic Balers Scrap Metal Press Machine For HMS Scrap Car Body
Features Gallery Product Description Request A Quote
Features
Specifications
Press Force: Metal Scrap Baling Machine
Press Room Size: 2000x1750x900mm
Bale Size: 500×500mm
Motor: 90kW
Capacity: 5ton/h
Bale Discharging: Push Out
Operation: PLC Automatic Control
Dimension: 7400x550x3200mm
High Light:

scrap baling press machine

,

scrap metal press machine

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/T-250B
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

Full Automatic Scrap Metal Press Machine for HMS Scrap Car Body





1. Product:

With bale side push out, this Y83/T-250B Scrap Metal Press is mainly suitable for the metal smelting factory with medium and large scaled output, metal processing and recycling plant and other places. For the customers in Russia and Ukraine, this product is extremely popular and it is one of our best sellers. Its outstanding stong points are high stable performance, low failure rate, high production efficiency, high density of bales and so on.



Our Scrap Metal Press Factory can be manipulated by hand or PLC. According to the requirements of users, its compacting box varies in size, such as 2000mm×1400mm×900mm or 2000mm×1750mm×1200mm. In addition, this product is allowed to be structured with pull rod so as to be convenient for assembling, disassembling, transporting in containers, decreasing the cost of delivery. The applicable thickness of the processing materials reaches 5mm. The motor of 60kw or 74kw can be configured as required.





2. Technical parameters:

Scrap Metal Press Factory
Model Y83/T-250B
Cylinder pushing /shearing force 250 ton
Maximum working pressure 25MPa
Compress room size 2000×1750×900mm
Bale dimensions (L×W×H) 500×500mm
Capacity 5 tons/h
Theoretical dry cycle time 90 sec.
Max. thickness can be press 6mm
Motor 90kW
Operation method Hand Valve Control or PLC control
Bale discharging method Push out
Weight 26500(kgs)
Baler dimensions (L×W×H) 7400×5500×3200mm







3. Details:

1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.
2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.


4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

6. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

Scrap Car Body

HMS 1& 2





7. Photos:

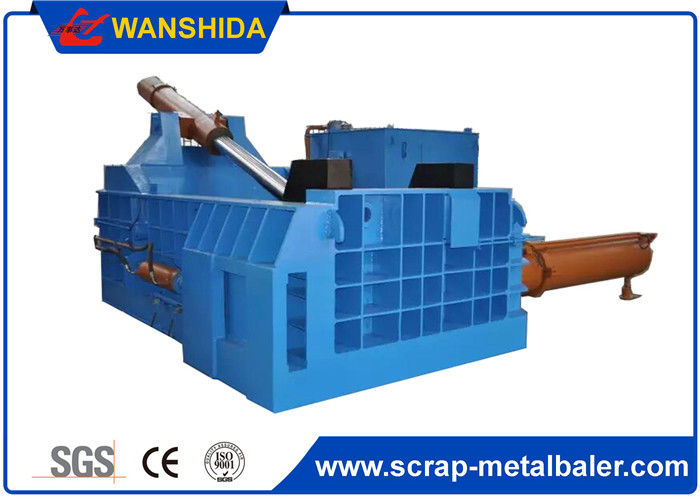

Fully Automatic Balers Scrap Metal Press Machine For HMS Scrap Car Body 0Fully Automatic Balers Scrap Metal Press Machine For HMS Scrap Car Body 1Fully Automatic Balers Scrap Metal Press Machine For HMS Scrap Car Body 2
