Scrap Steel Plate Cutting Machine , 250 Ton Hydraulic Scrap Metal Shearing Machine
1 set
MOQ
Negotiable
Price
Scrap Steel Plate Cutting Machine , 250 Ton Hydraulic Scrap Metal Shearing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43-2500
High Light:

alligator machinery

,

scrap processing machines

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Hydraulic Alligator Shear
Blade Length: 1000mm
Jaw Size: 285mm
Motor: 37kW
Scrap Can Be Cut: D70mm Or 63x63mm
Press Scrap Force: 260kN
Weight: 9500kgs
PLC Brand: Mitsubishi Or Siemens
Product Description

250Ton Hydraulic Scrap Metal Shear Alligator Type Cutting machine



1. Product:

The Q43-2500 alligator shear is metal cutting machine. It used to get qualified furnace charge through cutting diverse scrap shaped steel section and structural metals at cold state like round steel, square steel, angle iron, I steel, steel plate and pipe, etc. It is commonly seen in the medium sized metal processing plant, steel works, scrap metal recycling site and so on. If there is no power at site, this product can be activated by diesel engine according to the demands of users.



2. Technical Parameters:

Model Q43-2500
Cutting Force 2500Kn
Press Scrap Force 260Kn
Length Of Blade 1000Mm
Jaw Size 285Mm
Motor Power 18.5 Kw x 2sets
Cycle Time Sec
Dimensions 2650×1024×1880mm
Weight 9500Kgs
Scrap Be cutted Size of scrap be cutted
Round Steel Φ70mm
Square Steel 63×63mm
Angle Steel 160×160×12mm
Channel Steel 280×124×11.5mm
Steel Plate

40×300mm









3. Description:

The major strong points of the alligator shear are balanced and steady transmission, stable running speed against load change. Controlled by buttons, the machine is able to accomplish the automatic cutting and manual feeding. Highly praised by customers from Russia and Ukraine, this product has been sold nearly 300pcs to these customers in the past two years.



This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.



4. Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
Operation Mode
Special design is in consistent with customers' needs. This machine can apply manual feeding device, manual shearing system for single cutting or automatic continuous cutting system. As to the small sized machine, the foot pedal can be used for control.


5. Features
1.Under the hydraulic drive, this alligator shear is safe, reliable and convenient for manipulation.
2. The blade opening length varies, including 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm and 1800mm. The shearing force is classified into eight grades, ranging from 63ton to 500ton. Users can select the machine with different force and blade opening size in certain range based on the working scale and shearing requirements.
3. It doesn't need the foot bolts to install the machine.
4. At the place where there is no power supply, the equipment can be powered by the diesel engine.

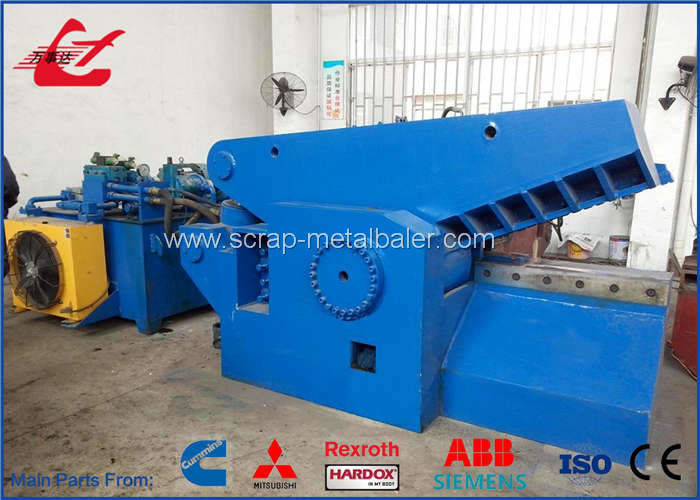

6. Photos:

Scrap Steel Plate Cutting Machine , 250 Ton Hydraulic Scrap Metal Shearing Machine 0Scrap Steel Plate Cutting Machine , 250 Ton Hydraulic Scrap Metal Shearing Machine 1Scrap Steel Plate Cutting Machine , 250 Ton Hydraulic Scrap Metal Shearing Machine 2
