100ton Scrap Metal Cutting Machine Alligator Shear CE ISO Certificate Export to EUROPE
1. Product:
Our Q43-1000 Scrap Metal Shear/ alligator shear is commonly applied in the small sized metal processing factory and waste metal recycling unit. It can be designed in integrated structure with the connected mainframe and the hydraulic station on the basis of customers' demands. Thus our product becomes space saving, convenient for delivery and operation.
This alligator shear incorporates a series of features. Therein, the hydraulic transmission makes it work stably, safely and reliably with low noise. Meanwhile, this product can be manipulated through buttons or foot pedal. Nowadays, it has been exported to Ukraine, Russia, India and other countries.
2. Technical Parameters:
Model | Q43-1000 |
Cutting Force | 1000Kn |
Press Scrap Force | 80Kn |
Length Of Blade | 800Mm |
Jaw Size | 285Mm |
Motor Power | 11 Kw |
Cycle Time | Sec |
Dimensions | mm |
Weight | Kgs |
Scrap Be cutted | Size of scrap be cutted |
Round Steel | Φ40mm |
Square Steel | 35×35mm |
Angle Steel | 80×80×6mm |
Channel Steel | 140×60×8mm |
Steel Plate |
18×180mm |
3. Description:
The major strong points of the alligator shear are balanced and steady transmission, stable running speed against load change. Controlled by buttons, the machine is able to accomplish the automatic cutting and manual feeding. Highly praised by customers from Russia and Ukraine, this product has been sold nearly 300pcs to these customers in the past two years.
This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.
4. Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
Operation Mode
Special design is in consistent with customers' needs. This machine can apply manual feeding device, manual shearing system for single cutting or automatic continuous cutting system. As to the small sized machine, the foot pedal can be used for control.
5. Features
1) Under the hydraulic drive, this alligator shear is safe, reliable and convenient for manipulation.
2) The blade opening length varies, including 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm and 1800mm. The shearing force is classified into eight grades, ranging from 63ton to 500ton. Users can select the machine with different force and blade opening size in certain range based on the working scale and shearing requirements.
3) It doesn't need the foot bolts to install the machine.
4) At the place where there is no power supply, the equipment can be powered by the diesel engine.

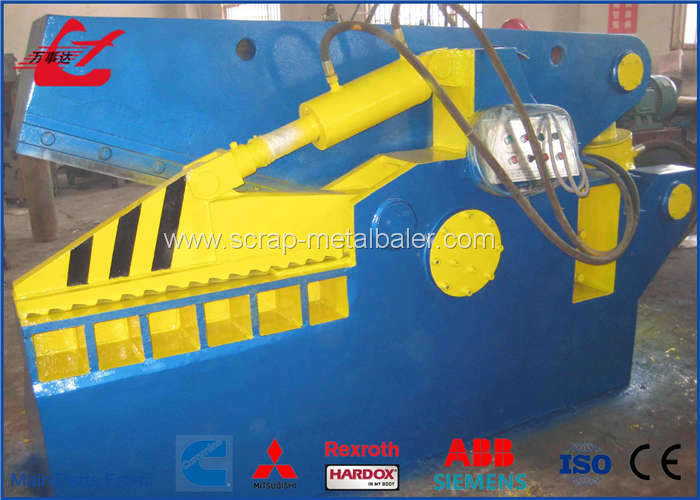

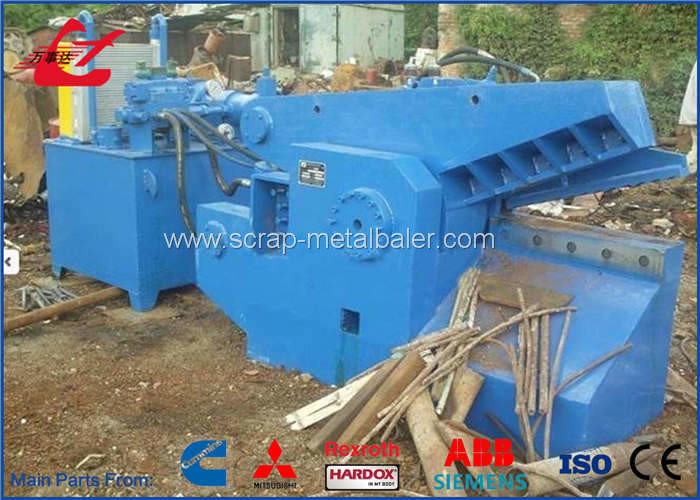

6. Photos:
