100 Ton Waste Paper Baler Paper Press Machine 1100 × 1200 × 1500mm Bales

1 set
MOQ
Negotiable
Price
100 Ton Waste Paper Baler Paper Press Machine 1100 × 1200 × 1500mm Bales
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Waste Paper Baler
Bale Weight: 1000KGS
Bale Size: 1100x1200x(1500-1900)mm Or Customized
Motor: 22kW
QC: Testing,Production Management,Inspection Etc
PLC Brand: Mitsubishi Or Siemens
Output Capacity: 6-8t/h
Strapping Wire: 4 Wires
High Light:

cardboard baler machine

,

waste paper baling press machine

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82/W-100Z
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Product Description

100Ton Waste Paper Baler Horizontal Type for Waste Cardboards



We are China Waste paper balers manufacturer-Wanshida hydraulic machinery company. We specialize in produce balers for all kinds of waste about 18 years.



1. Product:

This Y82W-100Z waste paper baler is commonly applied in baling loose materials, such as scrap paper, waste carton, news paper, waste plastic, PET bottles, plastic film and recycle case, straws, etc.



2. Technical Specifications

Model Y82W-100Z Horizontal Waste Cardboards Baler
Balel Weight 1000kgs
Bale Size (W×H×L) 1100×1200×(1500-1900)mm
Press Force 100tons
Output -with conveyor feeding
Output -Manual feeing
6-8tons in one hour
4-5tons in one hour
Motor Power 22kw
Strapping Wire 4 wires
Dimensions (with conveyor)
Dimensions (Without Conveyor)
11000×15000×3250mm
11000×2200×3000mm
Weight 20tons







3. Features

1) Controlled by PLC system, this baler is equipped with the touch screen for window monitoring, error warning with synchronous indicator diagram, bale length setting and other operations.

2) The design of floating clamping device on the upper, left and right directions facilitates the automatic distribution of four sided pressure. It makes the machine capable of baling a wide range of materials.

3) Equipped with 6m long conveyor belt, this automatic waste paper baler is able to load and feed materials automatically. Moreover, it supports automatic binding performance, improving the baling speed.

4) The pushing cylinder and the bale ejector are connected reliably in spherical structure, prolonging the longevity of oil seal.

5) There are several shear blades distributed at the feeding inlet increasing the cutting efficiency.

6) Our automatic waste paper baler adopts the hydraulic circuit design with low noise to increase the working efficiency and decrease the failure rate.

7) It can be easily mounted without any foundation.

8) The specific dimensional design of the compress room and the bale is available as required.



4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



5. Applications

OCC

Carton

Cardboard

Dry Soft Plastic

PET Bottles

Plastic film

White Goods

Shred paper

News Paper

Scrap Tire

HDPE Jars

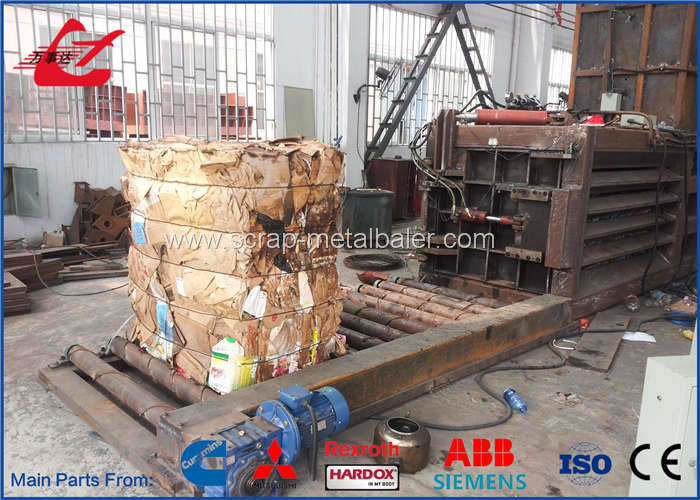

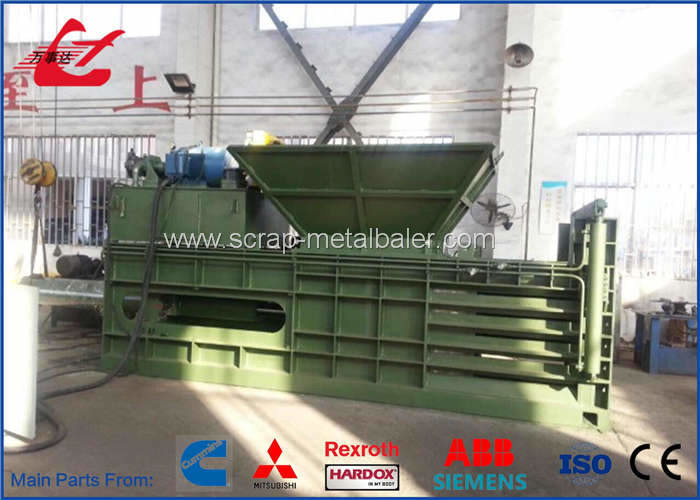

6. Photos:

100 Ton Waste Paper Baler Paper Press Machine 1100 × 1200 × 1500mm Bales 0100 Ton Waste Paper Baler Paper Press Machine 1100 × 1200 × 1500mm Bales 1
