Y82W-125 Horizontal Waste Paper Baler Manual Belting with Feeding Conveyor
1. Product:
This Y82W-125 waste paper baler is commonly applied in baling loose materials, such as scrap paper, waste carton, news paper, waste plastic, PET bottles, plastic film and recycle case, straws, etc.
2. Technical Specifications
Model | Y82-125 |
Bale Weight | 1200kgs |
Bale Size (W×H×L) | 1100×1200×(1500-1900)mm |
Press Force | 125tons |
Output -Conveyor feeding Output -Manual feeing |
9.6tons in one hour 6tons in one hour |
Motor Power | 37kw |
Strapping Wire | 5 wires |
Dimensions (with conveyor) Dimensions (without conveyor) |
12000×15000×3250mm 12000×2200×3200mm |
Weight | 25tons |
3. Features
1) Controlled by PLC system, this baler is equipped with the touch screen for window monitoring, error warning with synchronous indicator diagram, bale length setting and other operations.
2) The design of floating clamping device on the upper, left and right directions facilitates the automatic distribution of four sided pressure. It makes the machine capable of baling a wide range of materials.
3) Equipped with 6m long conveyor belt, this automatic waste paper baler is able to load and feed materials automatically. Moreover, it supports automatic binding performance, improving the baling speed.
4) The pushing cylinder and the bale ejector are connected reliably in spherical structure, prolonging the longevity of oil seal.
5) There are several shear blades distributed at the feeding inlet increasing the cutting efficiency.
6) Our automatic waste paper baler adopts the hydraulic circuit design with low noise to increase the working efficiency and decrease the failure rate.
7) It can be easily mounted without any foundation.
8) The specific dimensional design of the compress room and the bale is available as required.
4. Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
5. Applications
OCC
Carton
Cardboard
Dry Soft Plastic
PET Bottles
Plastic film
White Goods
Shred paper
News Paper
Scrap Tire
HDPE Jars

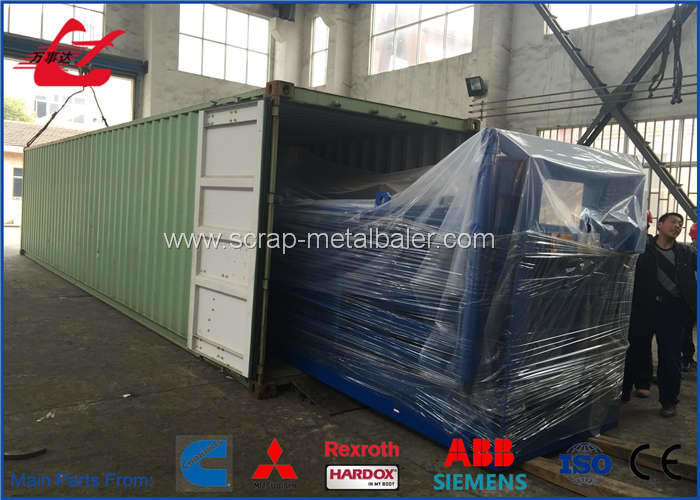

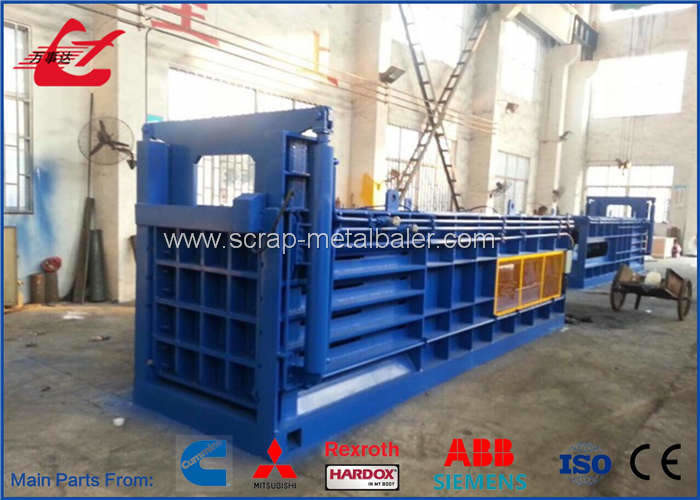

6. Photos:
