Mobile Hydraulic Scrap Metal Scrap Baler Logger with Cummins Diesel Engine
1 set
Mobile Hydraulic Scrap Metal Scrap Baler Logger with Cummins Diesel Engine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83/D-3000A
High Light:

car logger baler


scrap metal recycling equipment

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Name: Scrap Baler Logger
Press Room Size: 3000x1620x620mm/Customized
Bale Size: 500x400×400mm/Customized
Diesel Engine: 86kW
Capacity: 5-7ton/h
Model: Mobile
Operation: PLC Automatic Control
Dimension: 7200x2300x3500mm
Product Description

WANSHIDA Mobile Hydraulic Scrap Metal Logger Baler with Cummins Diesel Engine



1. Product:

We Can accept customize the baler logger according to users request. Press room length we can make 3000, 4000, 5000, 6000 etc. PLC control system we can use Siemens or Mitsubishi brand.

This Y83/D-3000A Trailer mounted Metal Scrap Baler Logger is mainly suitable for the metal smelting factory with medium and large scaled output, metal processing and recycling plant and other places. For the customers in Russia and Ukraine, this product is extremely popular and it is one of our best sellers. Its outstanding stong points are high stable performance, low failure rate, high production efficiency, high density of bales and so on.


This scrap metal baler logger fully expresses the concept of mobility and versatility. Compared to conventional baling machine, our trailer mounted scrap baler logger needs smaller space and is mounted on trailers in order to work in different working environments.



2. Technical parameters:

Scrap Metal Press Factory
Model Y83/D-3000A
Cylinder pushing /shearing force 160 ton
Maximum working pressure 20MPa (Max. 25MPa)
Compress room size 3000×1620×620mm
Bale dimensions (L×W×H) 500×400x400mm
Capacity 5-7 tons/h
Theoretical dry cycle time 60 sec.
Max. thickness can be press 3mm
Diesel engine 86kW
Operation method PLC control baling, grab for feeding
Bale discharging method by grab
Weight 26000(kgs)
Baler dimensions (L×W×H) 7200×2300×3550mm





3. Details:

1) Our trailer mounted scrap baler logger is available in two types of power supplies which are electric motor and diesel engine. The diesel engine powered baling machine is extremely convenient for places providing no power. Detailed information please ask for our sales team.

2) Friendly operator interface control or remote control delivers moch easier operation and lower labor cost.

3) This range of scrap baler logger adopt clamping method for compression, and operational grap is available to meet your application needs. Moreover, if you want more personal operation room or more inforamtion about the scrap handling equipment, please feel free to contact us.

4. Advantage of the diesel engine for scrap baler logger

1) Highly distinguished by its utmost loading capacity and power supply.

2) Turbo charger delivers superior knock resistance.

3) Simple structure with no ignition system allows for convenient maintenance and long service life.

4) Diesel contains more energy release and higher compression. Higher compression leads to higher energy efficiency.

5) Being irrespective of working environment, the diesel engine allows scrap metal baler logger to work in places even with no electric power supply.


5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

Electric Motor Drive


6. Applications

Non Ferrous Metals


Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

Scrap Car Body


Gas tanks


7. Photos:

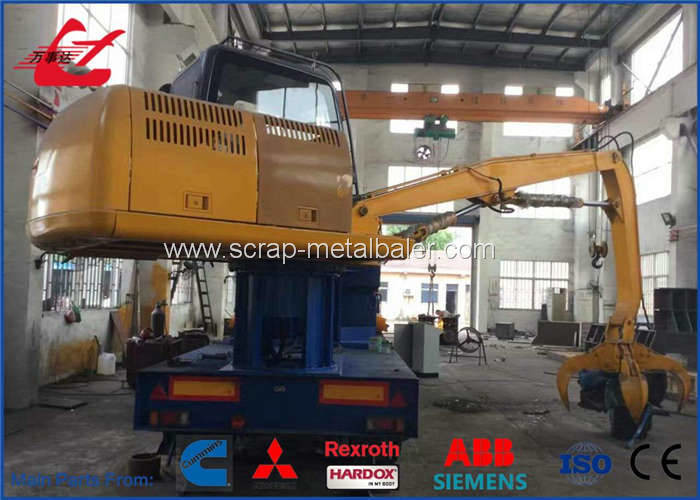

Mobile Hydraulic Scrap Metal Scrap Baler Logger with Cummins Diesel Engine 0

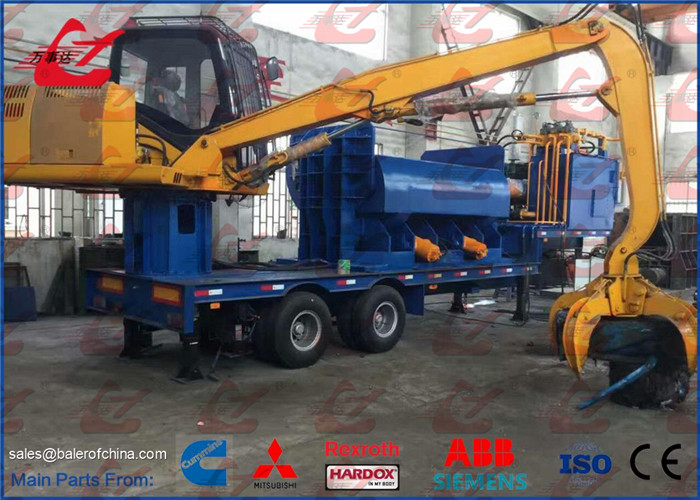

Mobile Hydraulic Scrap Metal Scrap Baler Logger with Cummins Diesel Engine 1

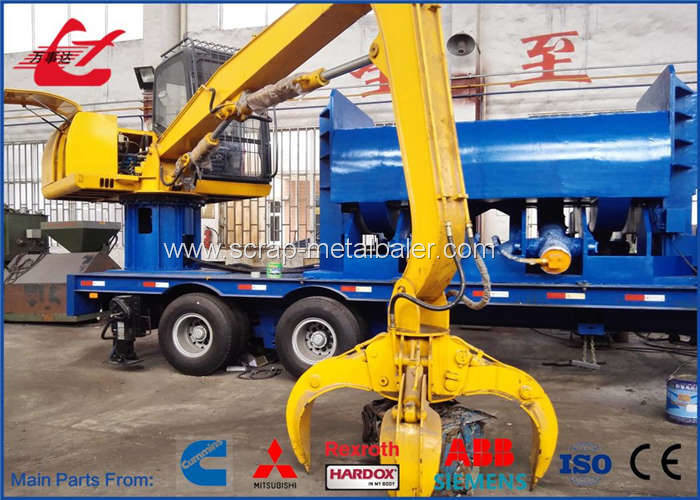

Mobile Hydraulic Scrap Metal Scrap Baler Logger with Cummins Diesel Engine 2
