High Efficiency Barrel Crusher Drum Press Machine 1460rpm Rated Speed WANSHIDA

1 set
MOQ
Negotiable
Price
High Efficiency Barrel Crusher Drum Press Machine 1460rpm Rated Speed WANSHIDA
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Drum Press Machine
Compress Box Size: 790x790x1060mm
Size Of Baled Block(H): Min. 60mm
Motor: 11kW
Dimensions: 1150x1500x2950mm
Weight: 1800kg
Press Force: 25Ton
Brand: WANSHIDA
High Light:

drum compactor

,

oil drum crusher

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82-25
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Product Description

WANSHIDA Drum Crusher Press Machine 200L Steel Drums



We are China metal scrap press manufacturer-Wanshida Hydraulic Machinery. We have more than 30 years experience in researching and developing metal baler presses, metal cutting machine, etc.



1. Products:

The Y82-25 Drum Crusher is a compact electro hydraulically operated 208L barrel press. And the compressed height is Min. 60mm. With its 30 Tons pressing force, this machine is suitable for both light steel drums, or rolling hoop barrels, any residual fluids discharge during compaction are collected in a 30-liter collection tank, which can be drained easily through an integral tap.

Y82-25 Used Drum Crusher is used to compress 200L steel drums.
And the compressed height is Min. 60mm.



2. The technical parameters:

SN. Name and Content of Parameter Remark
1 Main Hydraulic CYLD Type YG125/80-1000
Max.Push force 250 kN 25 ton
Stroke 1000 mm
2 Compress box size(L × W × H) 790 × 790 × 1060 mm
3 Size of baled block(H) Min. 60 mm
4 Hydraulic system pressure 21 MPa
5 Electromotor Type Y 160M -4
Power 11 kW
Rated speed 1460 rpm
6 Oil pump Type 40YCY14-1B
Nominal discharge 40 ml/r
Nominal pressure 31.5 MPa
7 Overall size(L × W × H) 1150 × 1500 × 2950mm
8 Weight 1800kg







3. Quality: This machine apply to ISO9001: 2000 standard.


4. Service:
1) One year guarantee and lifelong maintenance;
2) Any problem, you can call us directly.

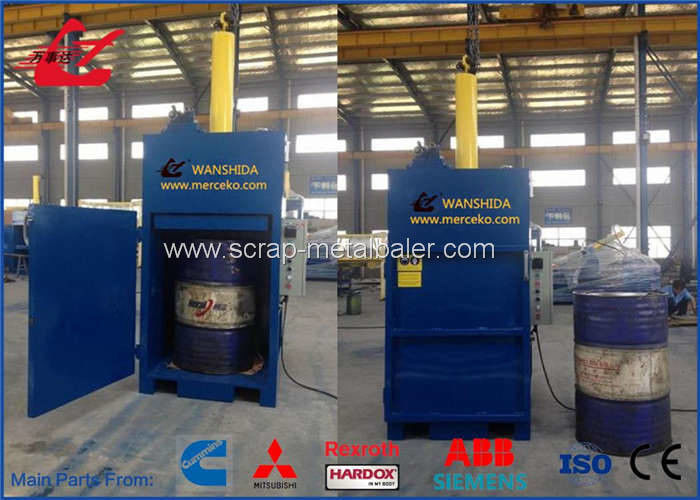

5. Photos:

High Efficiency Barrel Crusher Drum Press Machine 1460rpm Rated Speed WANSHIDA 0High Efficiency Barrel Crusher Drum Press Machine 1460rpm Rated Speed WANSHIDA 1
