100 Ton Hydraulic Copper Wire Scrap Baling Press Machine 200 × 200mm Bale Size
1 set
MOQ
Negotiable
Price
100 Ton Hydraulic Copper Wire Scrap Baling Press Machine 200 × 200mm Bale Size
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-100
High Light:

scrap baling press machine

,

scrap metal press machine

Payment & Shipping Terms
Packaging Details: 5000KGS, Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Metal Scrap Baling Machine
Press Room Size: 1000x600x500mm
Bale Size: (200-300)×200×200mm
Motor: 11kW
Capacity: 1000-1200KG/h
Max. Thickness Can Be Press: 3mm
Guarantee: 1 Year
Press Force: 100ton
Product Description

WANSHIDA 100ton Hydraulic Copper Wire Scrap Baling Press Machine



1. Products:

This Y83-100 Aluminum Used Beverage cans baler press compactor is mostly applied in the metal smelting factory and scrap metal recycled station with low requirement on production. It is the smallest one among our metal baling presses. Operated manually, this product makes the bale in small size of 200×200mm convenient for moving and smelting. The bale is extremely suited to be sent to the metal smelting furnace in small size with high efficiency, improving the smelting speed. More information about the scrap metal baler will be obtained from our sales group.



2. Technical data:

Aluminum Used Beverage cans baler press compactor-Turn out
Model Y83-100
Cylinder pushing force 100 ton
Maximum working pressure 25MPa
Compress room size 1000×600×500mm
Bale dimensions (L×W×H) (200-300)×200×200mm
Motor 11kW
Capacity 1000-1200KG/h
Theoretical dry cycle time 100 sec.
Max. thickness can be press 2mm
Operation method Hand Valve Control
Bale discharging method Turn out
Baler dimensions (L×W×H) 3000×2080×2010 mm
Weight 4500kgs







3. Details:

1) Driven by hydraulic system, this turn out baler is highlighted by reasonable design, compact structure, small volume, light weight, small inetia of movement, low noise, stable traveling performance, flexible operation and so on.

2) Under the integrated hydraulic and electrical control, it is easy for operation and maintenance.
3) With wide applicable range, this product can work as the processing equipment in scrap metal recycling unit. It is also suitable for processing the furnace charge in the foundry of factory. The equipment offers powerful adaptability for the working conditions.
4) Our turn out baler performs with low energy consumption, easy installation, secure operation, high working efficiency, low price and other merits.



4. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Used Beverage cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires



5. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive





6. Photos:

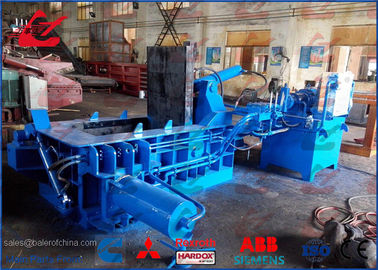

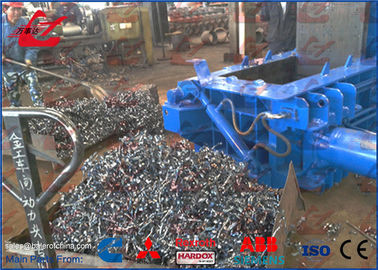

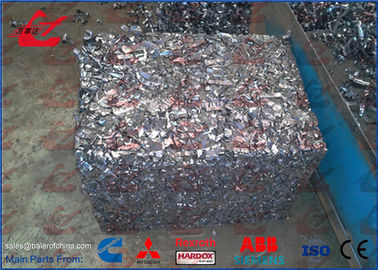

100 Ton Hydraulic Copper Wire Scrap Baling Press Machine 200 × 200mm Bale Size 0100 Ton Hydraulic Copper Wire Scrap Baling Press Machine 200 × 200mm Bale Size 1
