Scrap Iron Aluminum Profile Metal Scrap Baling Machine 160 Ton Press Force

1 set
Scrap Iron Aluminum Profile Metal Scrap Baling Machine 160 Ton Press Force
Features Gallery Product Description Request A Quote
Product Name: Metal Scrap Baling Machine
Press Room Size: 1600x1000x800mm
Bale Size: 300x300 Or 400x400mm
Motor: 30kW
Capacity: 2000-3000kg/h
Max. Thickness Can Be Press: 4mm
Motor Brand: Siemens
Press Force: 160Ton
High Light:

scrap baling press machine


scrap metal press machine

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y83-160
Payment & Shipping Terms
Packaging Details: 5000KGS, Seaworthy packing
Delivery Time: 25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

Wanshida Scrap Iron Aluminum Profile Press Baler Machine 160Ton Press Force


1. Key Technical data:

1) Nominal force: 1600kN
2) Chamber size: 1600*1000*800mm
3) Capacity: 2000-3000kg/h
4) Bale size: 400x400 or 350x350mm


2. Details:

The Y83-160 Scrap steel compactor is a turn-out baler that is mainly suited to work in the metal smelting plant with small and medium production, waste metal recycling station.

Our machine supports manual operation. Its compress room can be made in size of 1400x900x700mm, 1600x1000x800mm or 1600x1200x800mm according to the demands of customers. Moreover, this scrap metal baler can be matched with the power of 22kW, 30kW, 37kW as required. The production output is about 3 tons per hour.


3. Application:

Y83-160 hydraulic metal baler press is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so as to reduce the cost of transportation & smelting, to speed up furnace charging.

4. Specifications:

Nominal force (kN) 1600
Dimension of compress room (L*W*H)(mm) 1600*1000*800
Bale dimension (L*W*H)(mm) (400-600)*350*350
Bale density (kg/m3 ) >1800
Capacity (kg/h) 2000-3000
Single cycle time(s) <150
Power (kW) 30
Bale discharging and operation Turn-out, hand valve control


5. Quality: This machine apply to ISO9001: 2000 standard.

6. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.


7. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive


8. Applications

Non Ferrous Metals


Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires

Scrap Car


9. Photos:

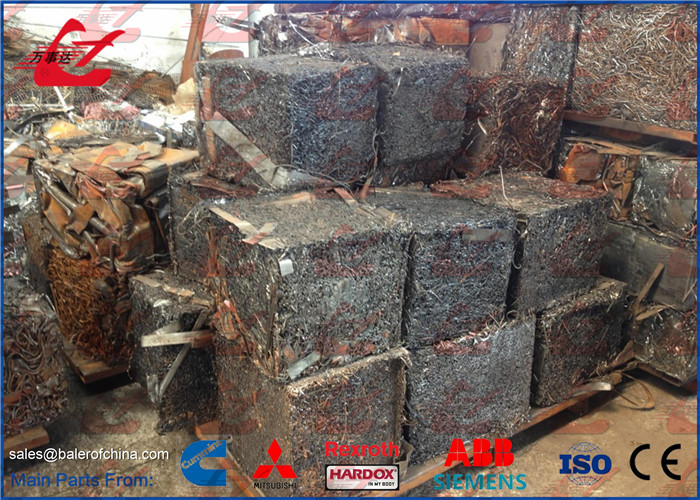

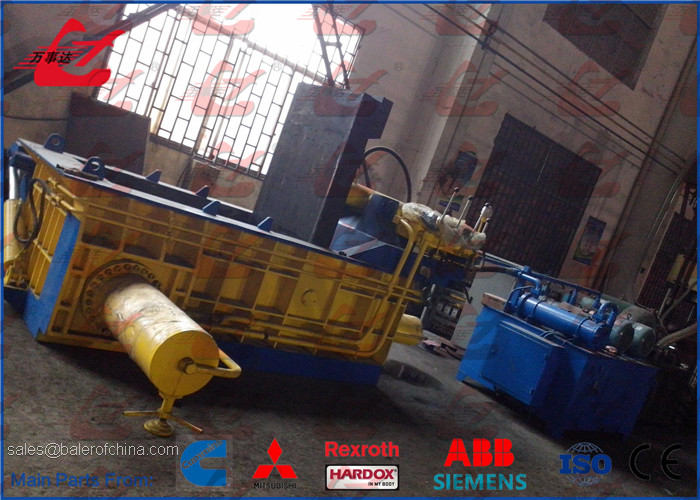

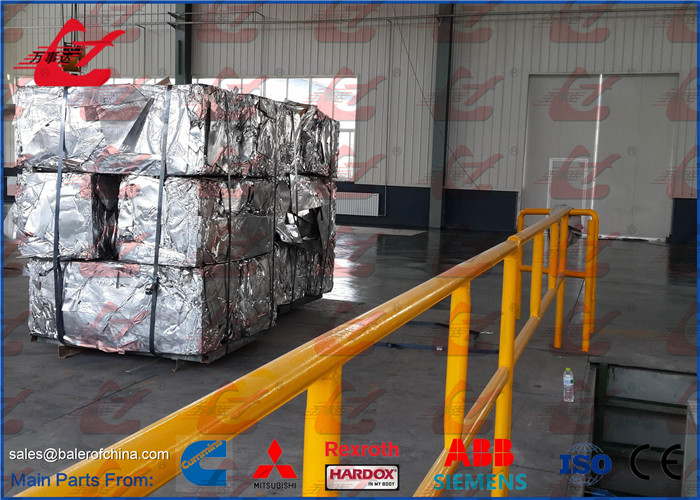

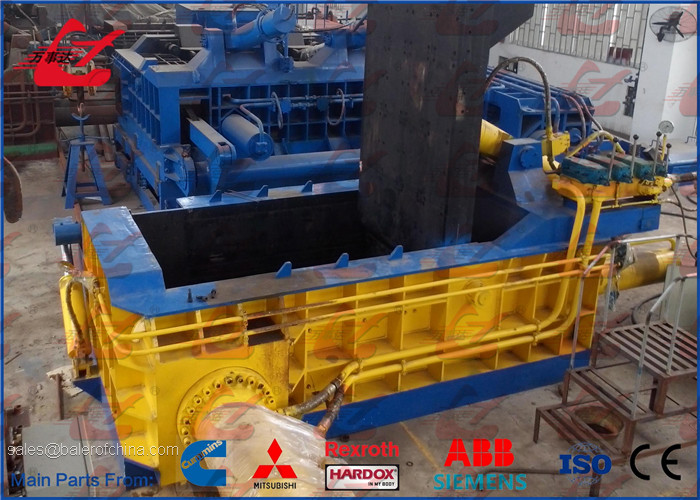

Scrap Iron Aluminum Profile Metal Scrap Baling Machine 160 Ton Press Force 0

Scrap Iron Aluminum Profile Metal Scrap Baling Machine 160 Ton Press Force 1
