Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm
1 set
MOQ
Negotiable
Price
Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82/W-125A
High Light:

cardboard baler machine

,

cardboard compactor machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Specifications
Product Name: Waste Paper Baler
Bale Weight: 900KGS
Bale Size: 1100x1100x1200mm
Motor: 37kW
Motor Brand: Siemens
PLC Brand: Mitsubishi Or Siemens
Output Capacity: 6-8t/h
Strapping Wire: 5 Wires
Product Description



Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm



We are China Waste paper balers manufacturer-Wanshida hydraulic machinery company. We specialize in produce balers for all kinds of waste about 18 years.



1. Product:

This Y82W-125A automatic waste paper baler is commonly applied in baling loose materials, such as scrap paper, waste carton, news paper, waste plastic, PET bottles, plastic film and recycle case, straws, etc.



2. Technical parameters:

Model Y82W-125A
Bale weight 900kg
Bale size (W×H×L) 1100×1100×1200mm
Press force 125t
Output capacity 6-8ton/h
Motor power 37kw
Strapping wire 5 wires
Dimensions 11150×8500×3500mm
Weight 16ton







3. Features

1) Controlled by PLC system, this baler is equipped with the touch screen for window monitoring, error warning with synchronous indicator diagram, bale length setting and other operations.

2) The design of floating clamping device on the upper, left and right directions facilitates the automatic distribution of four sided pressure. It makes the machine capable of baling a wide range of materials.

3) Equipped with 6m long conveyor belt, this automatic waste paper baler is able to load and feed materials automatically. Moreover, it supports automatic binding performance, improving the baling speed.

4) The pushing cylinder and the bale ejector are connected reliably in spherical structure, prolonging the longevity of oil seal.

5) There are several shear blades distributed at the feeding inlet increasing the cutting efficiency.

6) Our automatic waste paper baler adopts the hydraulic circuit design with low noise to increase the working efficiency and decrease the failure rate.

7) It can be easily mounted without any foundation.

8) The specific dimensional design of the compress room and the bale is available as required.



4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive



5. Applications

OCC

Carton

Cardboard

Dry Soft Plastic

PET Bottles

Plastic film

White Goods

Shred paper

News Paper

Scrap Tire

HDPE Jars

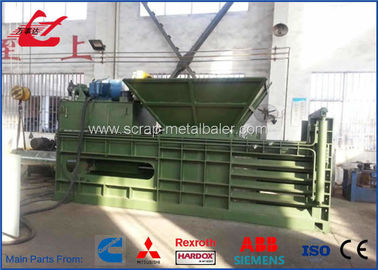

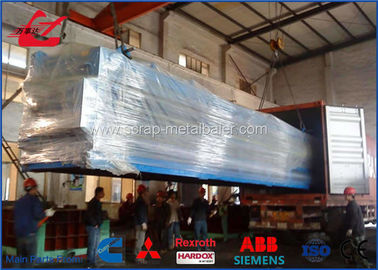

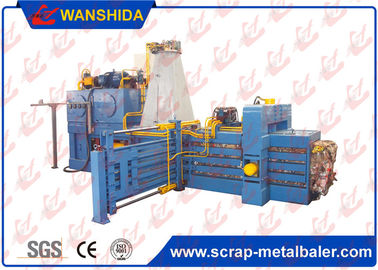

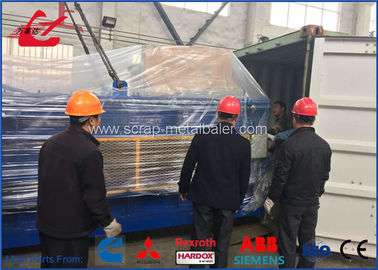

6. Photos:

Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm 0Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm 1Horizontal Automatic Tie Waste Paper Baler With Conveyor Feeding , Bale Size 1100x1100mm 2
