Y82-25 WANSHIDA Drum Press Machine , Hydraulic Metal Baler 1460 rpm Rated speed
We are China metal scrap press manufacturer-Wanshida Hydraulic Machinery. We have more than 30 years experience in researching and developing metal baler presses, metal cutting machine, etc.

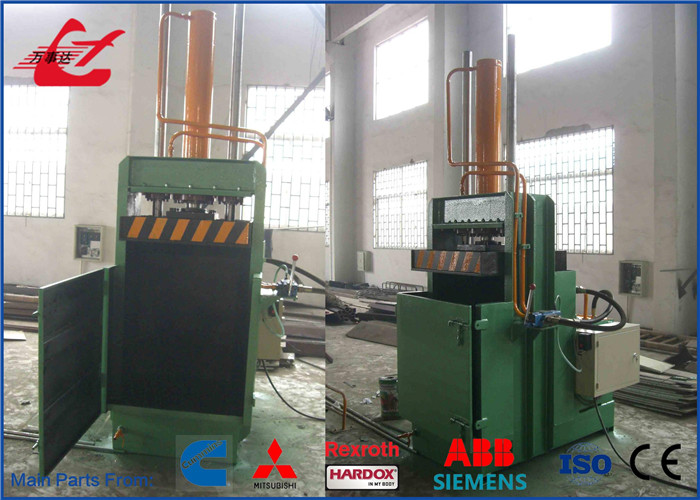

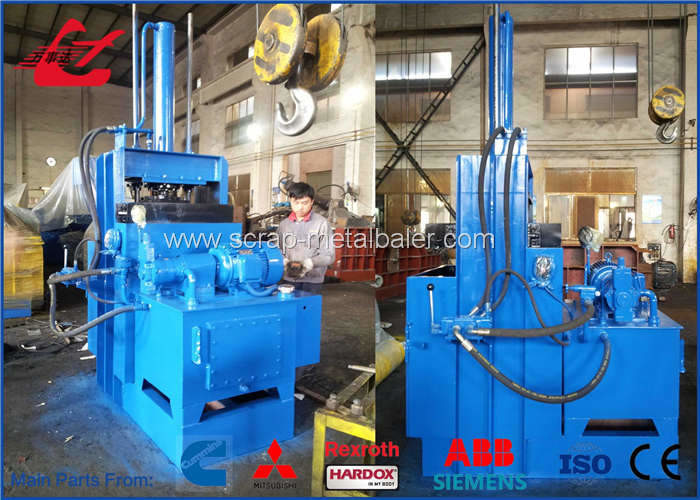

The Y82-25 Drum Crusher is a compact electro hydraulically operated 208L barrel press. And the compressed height is Min. 60mm. With its 30 Tons pressing force, this machine is suitable for both light steel drums, or rolling hoop barrels, any residual fluids discharge during compaction are collected in a 30-liter collection tank, which can be drained easily through an integral tap.
Y82-25 Used Drum Crusher is used to compress 200L steel drums.
And the compressed height is Min. 60mm.
2. The technical parameters:
|SN.||Name and Content of Parameter||Remark|
|1||Main Hydraulic CYLD||Type||YG125/80-1000|
|Max.Push force||250 kN||25 ton|
|2||Compress box size(L × W × H)||790 × 790 × 1060 mm|
|3||Size of baled block(H)||Min. 60 mm|
|4||Hydraulic system pressure||21 MPa|
|5||Electromotor||Type||Y 160M -4|
|Rated speed||1460 rpm|
|Nominal discharge||40 ml/r|
|Nominal pressure||31.5 MPa|
|7||Overall size(L × W × H)||1150 × 1500 × 2950mm|
