PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor
1 set
PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Y82W-125
High Light:

plastic bottle press machine


hydraulic pet bottle baling press

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Product Name: Plastic Bottle Baler
Bale Size: 1100x1200x(1500-1900)mm
Bale Weight: 1200kgs
Motor: 37kW
Efficiency: 9.6ton/h Conveyor Feeding
Strapping Wire: 5 Wires
Dimensions: 12000x15000x3250mm
Weight: 25ton
Product Description


PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor


Y82W-125 (Throughput 6-8tons/Hour)


1. Description:

Horizontal baler is a kind of scrap recycling equipment. It can be used as waste paper baler, plastic baler and cardboard baler, etc.
Our horizontal waste baler can be used together with mechanical feed equipment to reduce the material processing cost. It is of high efficiency and can satisfy your various baling requirements.
More Details about our Horizontal Waste Baler
Auto baling or manual tying up
Variable feed opening sizes are available.
This horizontal waste baler accepts the feeding materials from conveyor and air system.
Feed hopper is designed with access door.
This horizontal waste baler is fitted with bale size and it has full bale alarm function.
As a professional horizontal waste baler manufacturer in China, we can provide horizontal waste balers with automatic belting and horizontal waste balers with manual belting. Besides, we also offer scrap metal baler, alligator shearing machine, vertical waste baler, and so on. These products are CE certified and are of high quality and low price.


2. Technical Specifications

Model Y82-125
Bale Weight 1200kgs
Bale Size (W×H×L) 1100×1200×(1500-1900)mm
Press Force 125tons
Output -Conveyor feeding
Output -Manual feeing
9.6tons in one hour
6tons in one hour
Motor Power 37kw
Strapping Wire 5 wires
Dimensions (with conveyor)
Dimensions (without conveyor)
Weight 25tons



3. Features

Simple operation panel
Cutting blades on the top of press plate
Inform when bales compacted

Japan brand seal rings
CE Standard

Big loading hopper

Robust Buidling

Variable bale length


1) This Y82W-125A manual waste baler is designed in horizontal structure. The optional 6m long conveyor belt can be mounted for feeding materials automatically or manually.
2) Switched by buttons, it is able to run safely and reliably under the control of PLC.
3) This machine supports manual binding operation.


1.The configured power is adjustable in consistent with the actual requirements of production.
2. Users can select the apron conveyor, scraper conveyor chain or belt conveyor as they want.

The manual waste baler is mainly used to bale the waste paper like carton and news paper, scrap plastics like PET bottle, plastic film and recycle case, straws and other loose materials. Additionally, the compacting box and the bale of the machine can be designed in special dimension to meet specific demands of users.


4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive


5. Applications




Dry Soft Plastic

PET Bottles

Plastic film

White Goods

Shred paper

News Paper

Scrap Tire

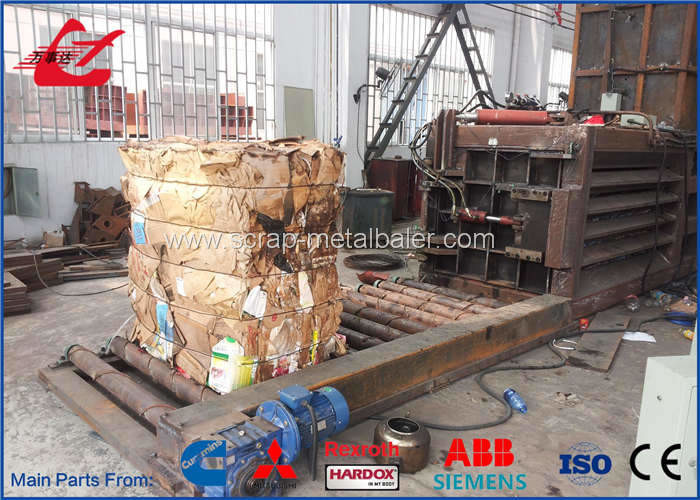

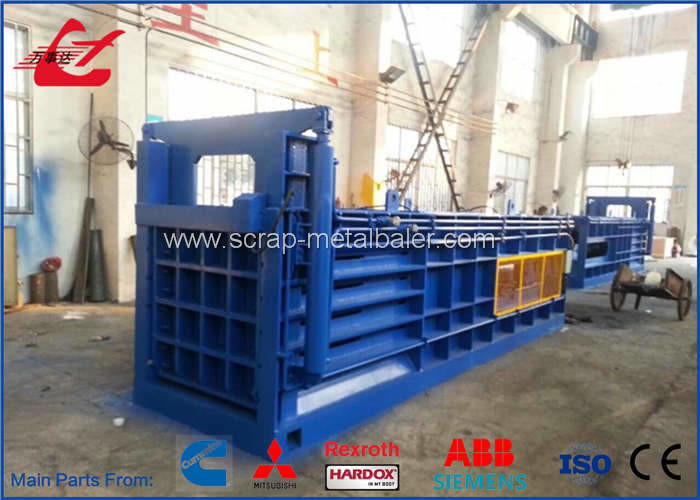

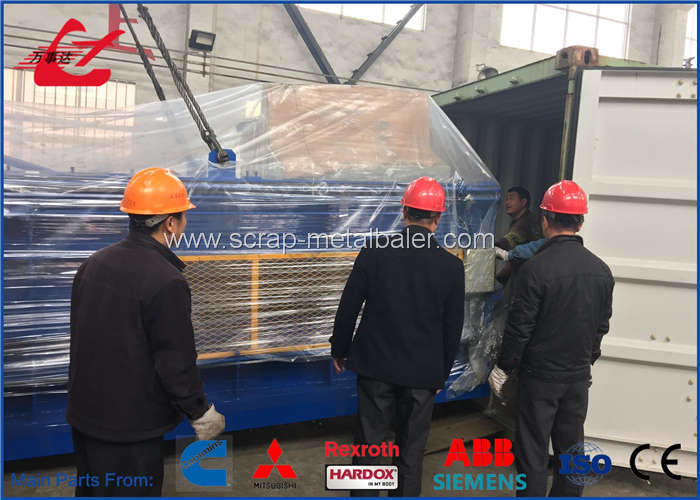

6. Photos:
PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor 0PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor 1PET Bottles Horizontal Baling Machine for Plastic Bottles , 37kW Motor 2
