630ton 7000mm chamber length Hydraulic Gantry Shear for Industrial Scrap Cutting with PLC Automatic Control

Name: 630ton 7000mm chamber length Hydraulic Gantry Shear for Industrial Scrap Cutting with PLC Automatic Control
Brand: Jiangsu Wanshida Hydraulic Machinery Co., Ltd
SKU: Q43L-6300
Price: 50,000.00 USD
Availability: InStock

Brand Name:	WANSHIDA
Model Number:	Q43L-6300
MOQ:	1 set
Price:	Negotiable
Delivery Time:	50 days
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO9001

Product Name:

Scrap Steel Guillotine Shear

Main Application:

Heavy Ferrous Recycling

Main Cutting Force:

630ton

Chamber Size:

7000×1800×900mm

Blade Length:

1800mm

Motor:

154kW

Cutting Frequency:

2-3 Times/min

PLC Brand:

Mitsubi-shi Or Sie-men-s

Guarantee:

1 Year

Control Method:

PLC Automatic

Hydraulic Pressure:

25MPa

Packaging Details:

Seaworthy packing

Supply Ability:

10 sets/month

Highlight:

630ton hydraulic gantry shear

7000mm chamber scrap metal shear

PLC automatic control scrap cutter

Product Description

630ton 7000mm chamber length Hydraulic Gantry Shear for Industrial Scrap Cutting with PLC Automatic Control

Product Introduction

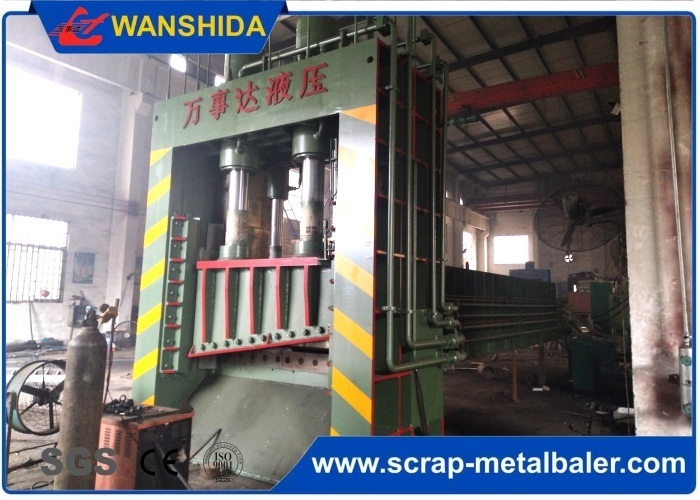

The Q43L-6300 hydraulic gantry shear is designed for industrial scrap cutting applications requiring stable hydraulic performance and automated operation. This hydraulic gantry shear integrates a PLC system, multi-cylinder compression, and high-pressure hydraulic drive to deliver consistent cutting results.

With a system pressure up to 25 MPa and multi-pump configuration, it ensures efficient energy transfer and stable output.

Applications

Steel processing plants
Scrap recycling centers
Heavy metal dismantling operations

Technical Specifications

Item	Specification
Model	Q43L-6300
Cutting Force	640 Ton
Hydraulic Pressure	20–25 MPa
Motor Power	154 kW
Loading Chamber	7000 × 1800 × 900 mm
Blade Length	1800 mm
Cutting Length	200–600 mm
Frequency	2–3 cuts/min
Pump Pressure	31.5 MPa
Operation	PLC Automatic
Weight	62 Ton

Technical Comparison Table

Type	Capacity	Force	Application	Automation
Gantry Shear	15–20 T/H	630–1000T	Heavy scrap	PLC
Guillotine Shear	10–15 T/H	500–800T	Plate cutting	PLC
Container Shear	4–6 T/H	400T	Medium scrap	Manual/PLC

Key Advantages

High-pressure hydraulic system stability
PLC automatic control reduces labor
Multi-cylinder system ensures balanced cutting force
Suitable for continuous scrap processing

FAQ

Q1: What control system is used?
A: The machine uses a PLC automatic control system.

Q2: What is the working pressure range?
A: The system operates between 20–25 MPa.

Q3: Is customization available?
A: Yes, feeding system, control mode, and layout can be customized.

CTA

Contact us to get a customized hydraulic gantry shear solution for your plant.
