1200mm Blade Length Hydraulic Alligator Shear Scrap Shearing Machine 13000Kgs Weight
1 set
MOQ
Negotiable
Price
1200mm Blade Length Hydraulic Alligator Shear Scrap Shearing Machine 13000Kgs Weight
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43-3150
High Light:

scrap processing machines

,

Scrap Metal cutter

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Product Name: Hydraulic Alligator Shear
Blade Length: 1200mm
Jaw Size: 285mm
Motor: 44kW
Scrap Can Be Cut: D80mm Or 70x70mm
Press Scrap Force: 630kN
Motor Brand: Siemens
PLC Brand: Mitsubishi Or Siemens
Product Description

315Ton Hydraulic Alligator Metal Shear Scrap Shearing Machine



1. Product:

Our Q43-3150 alligator hydraulic metal shear is the perfect equipment applied in the medium and large sized metal processing plant, steel works, waste metal recycling site and other places. It is mainly used to cut the waste metal at cold status into qualified materials for melting in the furnace. The applicable materials include various shaped steel section and structural metals like round steel, square steel, angle iron, I steel, plate steel, steel tube and so on. If needed, the diesel engine can be used to supply power for the machine at the place without electricity.



2. Technical Parameters:

Model Q43-3150
Cutting Force 3150Kn
Press Scrap Force 630Kn
Length Of Blade 1200Mm
Jaw Size 285Mm
Motor Power 22 Kw × 2sets
Cycle Time Sec
Dimensions 3230×1200×2140 mm
Weight 13000Kgs
Scrap Be cutted Size of scrap be cutted
Round Steel Φ80mm
Square Steel 70×70mm
Angle Steel 160×160×12mm
Channel Steel 280×124×11.5mm
Steel Plate

40×300mm











3. Description:

This alligator shear is mainly featured by automatic operation, matched blade in customized length and designed maximum cutting force, etc. Operated under button control, it realizes manual feeding and automatic cutting performance. Customers from Russia, Ukraine and other heavy industry countries are in great favor of this type of machine. In addition, we have the ability to design and create more fitted products to meet specific demands of users.

This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.



4. Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
Operation Mode
Special design is in consistent with customers' needs. This machine can apply manual feeding device, manual shearing system for single cutting or automatic continuous cutting system. As to the small sized machine, the foot pedal can be used for control.


5. Features
1.Under the hydraulic drive, this alligator shear is safe, reliable and convenient for manipulation.
2. The blade opening length varies, including 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm and 1800mm. The shearing force is classified into eight grades, ranging from 63ton to 500ton. Users can select the machine with different force and blade opening size in certain range based on the working scale and shearing requirements.
3. It doesn't need the foot bolts to install the machine.
4. At the place where there is no power supply, the equipment can be powered by the diesel engine.

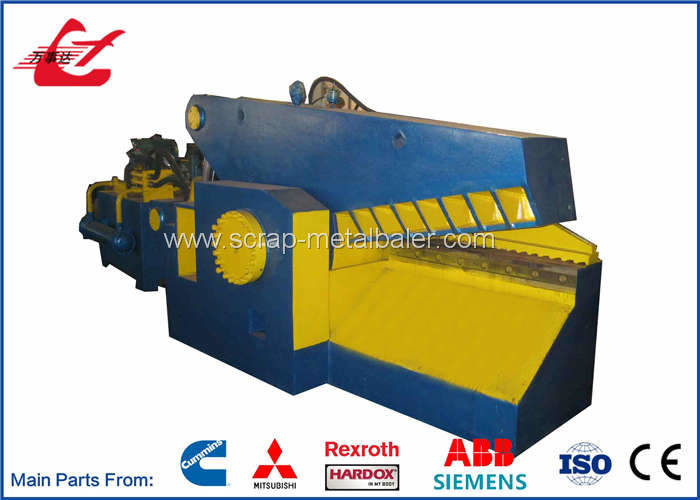

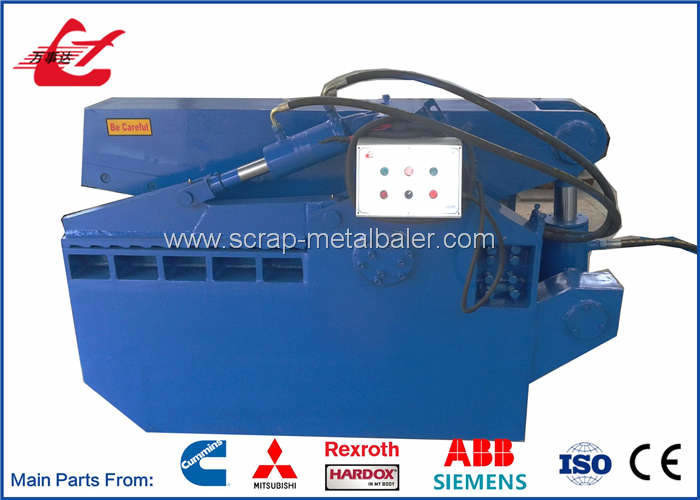

6. Photos:

1200mm Blade Length Hydraulic Alligator Shear Scrap Shearing Machine 13000Kgs Weight 01200mm Blade Length Hydraulic Alligator Shear Scrap Shearing Machine 13000Kgs Weight 11200mm Blade Length Hydraulic Alligator Shear Scrap Shearing Machine 13000Kgs Weight 2
