80 Ton Hydraulic Alligator Shear Cutting Machine With Guarding Safety Cover

1 set
MOQ
Negotiable
Price
80 Ton Hydraulic Alligator Shear Cutting Machine With Guarding Safety Cover
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Alligator Shear
Blade Length: 800mm
Jaw Size: 340mm
Motor: 7.5kW
Scrap Can Be Cut: D40mm Or 35x35mm
Type: Alligator Shear
Motor Brand: Siemens
PLC Brand: Mitsubishi Or Siemens
High Light:

alligator machinery

,

scrap processing machines

Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43-800
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Product Description

80Ton Hydraulic Alligator Waste Metal Shear with Guarding Safety Cover



1. Product:

Guarding hydrauic alligator shear:

This Q43-800 guarding hydrauic alligator shear is mainly applicable for metal processing plant and scrap metal recycling station in small scale. Equipped with the 800mm long cutting blade, it performs with large shearing force. Driven by hydraulic device, this machine offers secure performance and simple operation. Moreover, it is available in mounting without foot screws. If there is no power supply at the working site, this product can be powered by the diesel engine, saving both time and labor.

The advantage of this alligator shear is that all the weld joints are treated with fusion welding in the entire production process. The configured bolts meet higher strength standards than other similar products. This machine is able to shear about 3 to 5 tons of materials per shift. According to the demands of customers, this main frame and the hydraulic unit are integrated into all in one machine. Therefore, this product is space saving and convenient for transportation and operation. Moreover information about this product can be obtained through contacting our sales group.



2. Technical Parameters:



NO Q43-800 Guarding hydrauic alligator shear -- Technical Specifications
1 Largest shear force(ton) 800KN
2 Stroke of cut cylinder 240mm
3 Height of working table 790mm
4 frequency per minute(times) 8~12
5 Blede length 800mm
6 Largest Blade Opening 340mm
7 Hydraulic system pressure 21MPa
8 Total power 7.5kW



9

Electromotor

Type

Y132M-4

QTY

1 piece

Rated speed

1440rpm

Power

7.5kW/10HP

10 Hydraulic pump

Type

25YCY14-1B

QTY

1 piece

Nominal discharge

25ml/r

Nominal pressure

31.5MPa

11 Overall size of machine 2200×900×1600 mm



Max. Scrap size can be cut:
SN. Scrap name Scrap size QTY.
1 Round bar φ40 mm 1 PCS.
2 Square bar 35×35 mm 1 PCS.
3 Angle bar 40×40×4 mm 3 PCS.
4 Steel plate 14×125 mm 1 PCS.







3. Description:

This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.



4. Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
Operation Mode
Special design is in consistent with customers' needs. This machine can apply manual feeding device, manual shearing system for single cutting or automatic continuous cutting system. As to the small sized machine, the foot pedal can be used for control.


5. Features
1.Under the hydraulic drive, this alligator shear is safe, reliable and convenient for manipulation.
2. The blade opening length varies, including 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm and 1800mm. The shearing force is classified into eight grades, ranging from 63ton to 500ton. Users can select the machine with different force and blade opening size in certain range based on the working scale and shearing requirements.
3. It doesn't need the foot bolts to install the machine.
4. At the place where there is no power supply, the equipment can be powered by the diesel engine.





6. Photos:

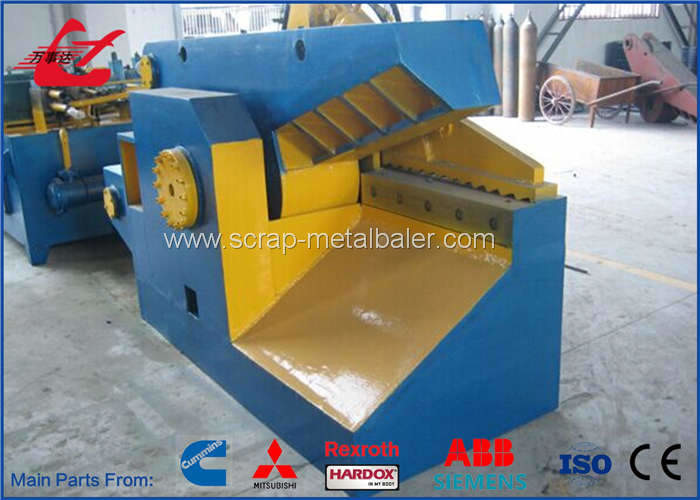

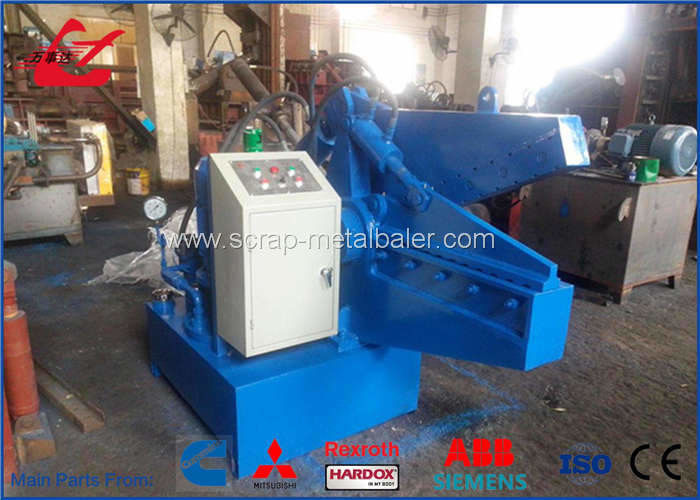

80 Ton Hydraulic Alligator Shear Cutting Machine With Guarding Safety Cover 080 Ton Hydraulic Alligator Shear Cutting Machine With Guarding Safety Cover 1
