Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear
1 set
MOQ
Negotiable
Price
Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: CE and ISO9001
Model Number: Q43W-4000A
High Light:

hydraulic metal shear

,

scrap metal recycling machine

Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 50 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Specifications
Product Name: Scrap Metal Shear
Feeding Mouth: 1500x1400mm
Outout Mouth: 1400x450mm Or Customized
Motor: 74kW
Capacity: 2-3 Times/min
Blade Length: 1400mm
Guarantee: 1 Year
PLC Brand: Mitsubishi Or Siemens
Product Description

Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear

1. Products:

Given our actual development situations at present, this Q43W-4000A horizontal metal shear is designed and fabricated through absorbing the advanced workmanship of congeneric products. It is mostly exported to Russia, Ukraine and other counties.



2.Technical data:

Model Q43W-4000A
Cutting Force 4000Kn
Press Scrap Force 1250Kn
Length Of Blade 1400Mm
Feeding mouth size 1500×1400mm
Output mouth size 1400×450mm
Motor Power 74kW
Cycle Time 2-3 times/min
Dimensions 5850x2200x2280mm
Weight 21000Kgs
Scrap Be cutted Size of scrap be cutted
Round Steel φ 110mm
Square Steel 100×100mm
Angle Steel 180×180×15mm (3pcs)
Channel Steel 320×90×10mm
Steel Plate 30×450mm
I Steel 320×132×11.5mm









3. Application:

This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.



4. Features:

1. Horizontal structure

2. Different from the product with mechanical transmission system, our hydraulically driven machine has a range of characteristics including small volume, light weight, small inertia of movement, low noise, steady movement, flexible operation, large cutting section, etc.

3. Due to the combination of hydraulic and electrical control, the horizontal metal shear is able to accomplish the shift of single and continuous cutting easily.

4. While cutting, the machine is able to process the materials automatically without manual support. Operators only need to feed the materials for cutting into the compress room continuously consistent with the cutting speed.

5. Our product can be powered by motor or Cummins diesel engine as required.



5. Photos:

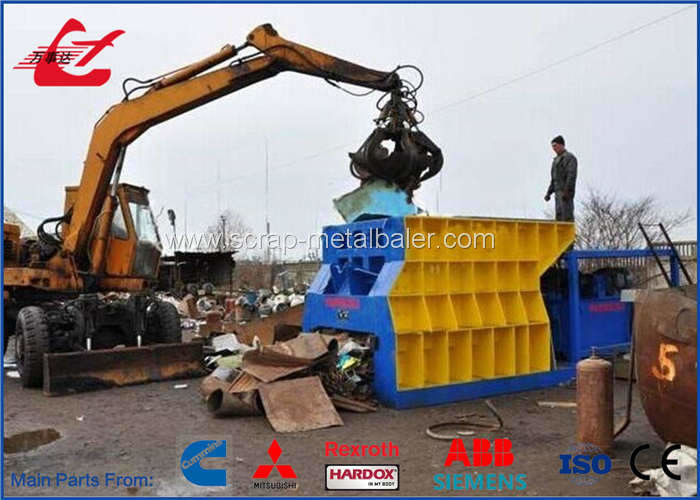

Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear 0

Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear 1Automatic Scrap Metal Recycling Machine Propane Tank Big Mouth Horizontal Shear 2
