Automatic Feeding and Automatic Cutting Shear Machine. It will save your labour cost and increase the production capacity very well.
|Press Scrap Force||1250Kn|
|Length Of Blade||1400Mm|
|Feeding mouth size||1500×1400mm|
|Output mouth size||1400×450mm|
|Cycle Time||2-3 times/min|
|Scrap Be cutted||Size of scrap be cutted|
|Round Steel||φ 110mm|
|Angle Steel||180×180×15mm (3pcs)|

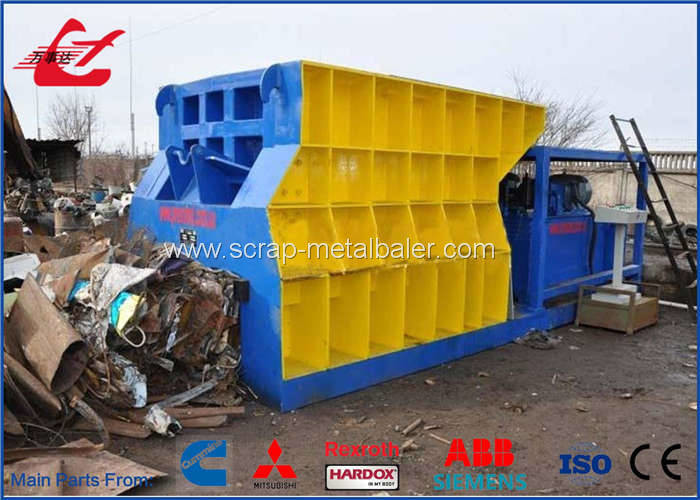

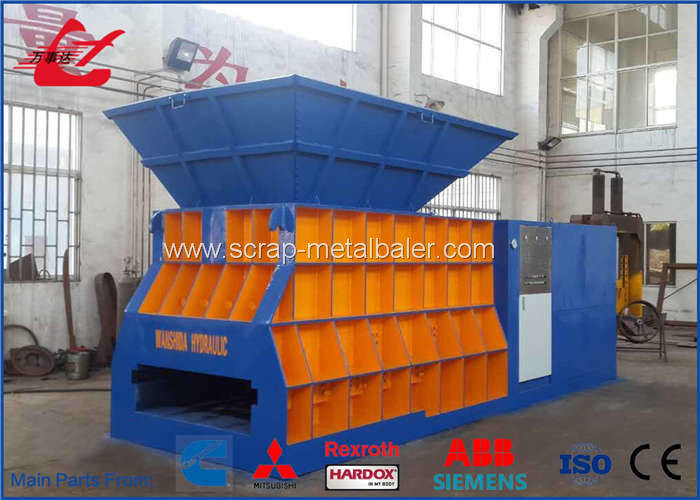

This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.
1. Horizontal structure
2. Different from the product with mechanical transmission system, our hydraulically driven machine has a range of characteristics including small volume, light weight, small inertia of movement, low noise, steady movement, flexible operation, large cutting section, etc.
3. Due to the combination of hydraulic and electrical control, the horizontal metal shear is able to accomplish the shift of single and continuous cutting easily.
4. While cutting, the machine is able to process the materials automatically without manual support. Operators only need to feed the materials for cutting into the compress room continuously consistent with the cutting speed.
5. Our product can be powered by motor or Cummins diesel engine as required.
